ACBD/DCBD Panel

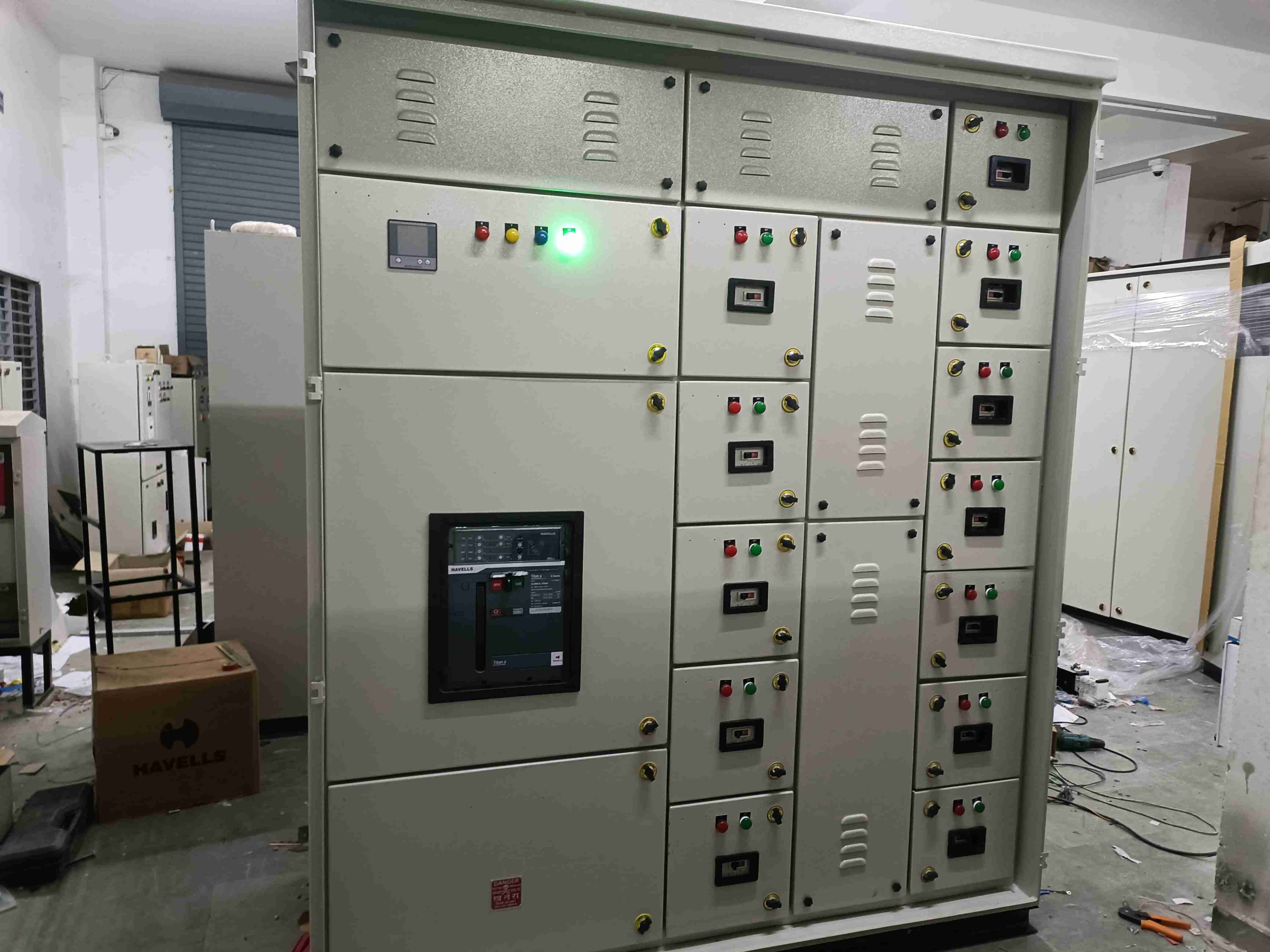

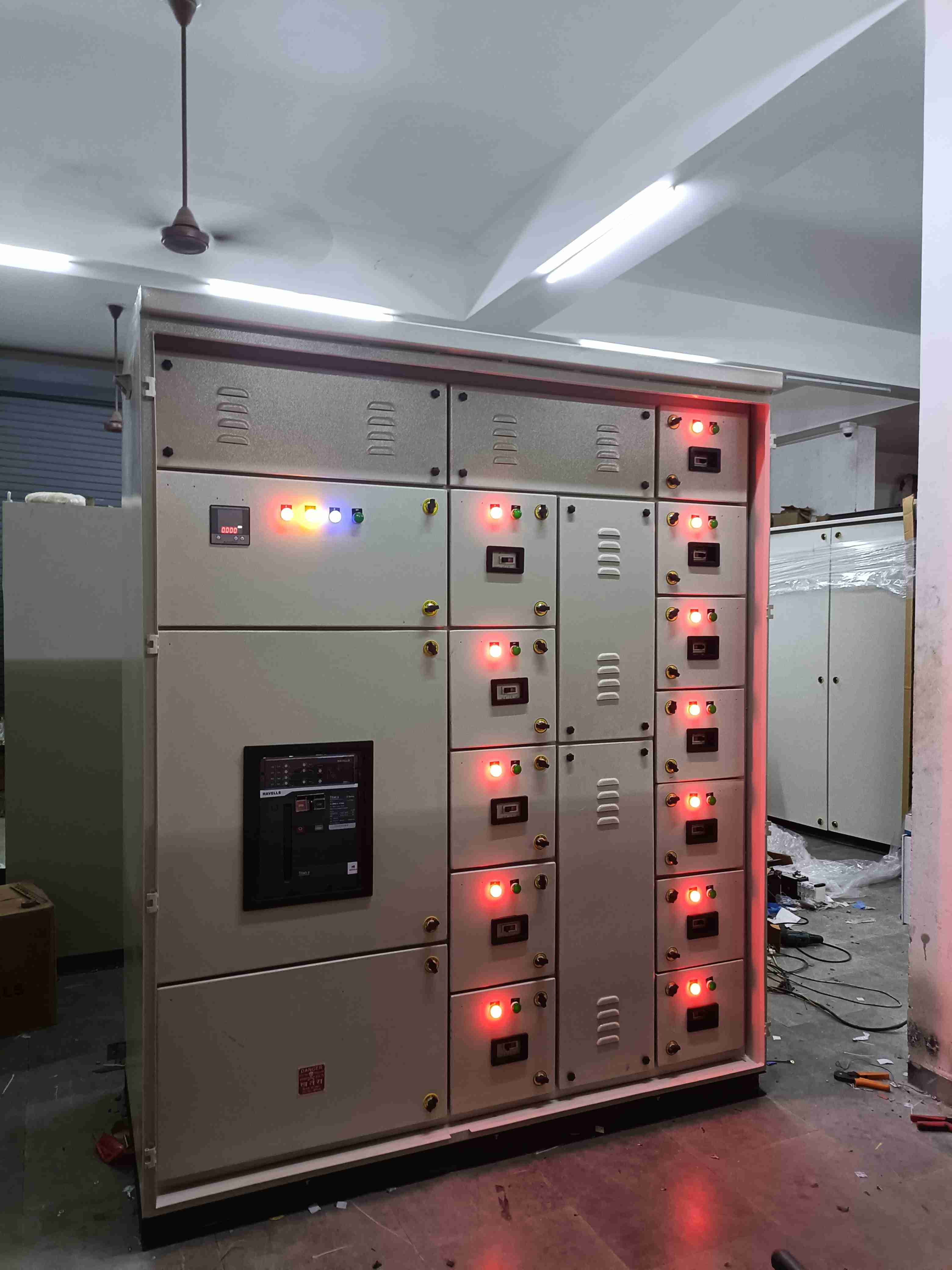

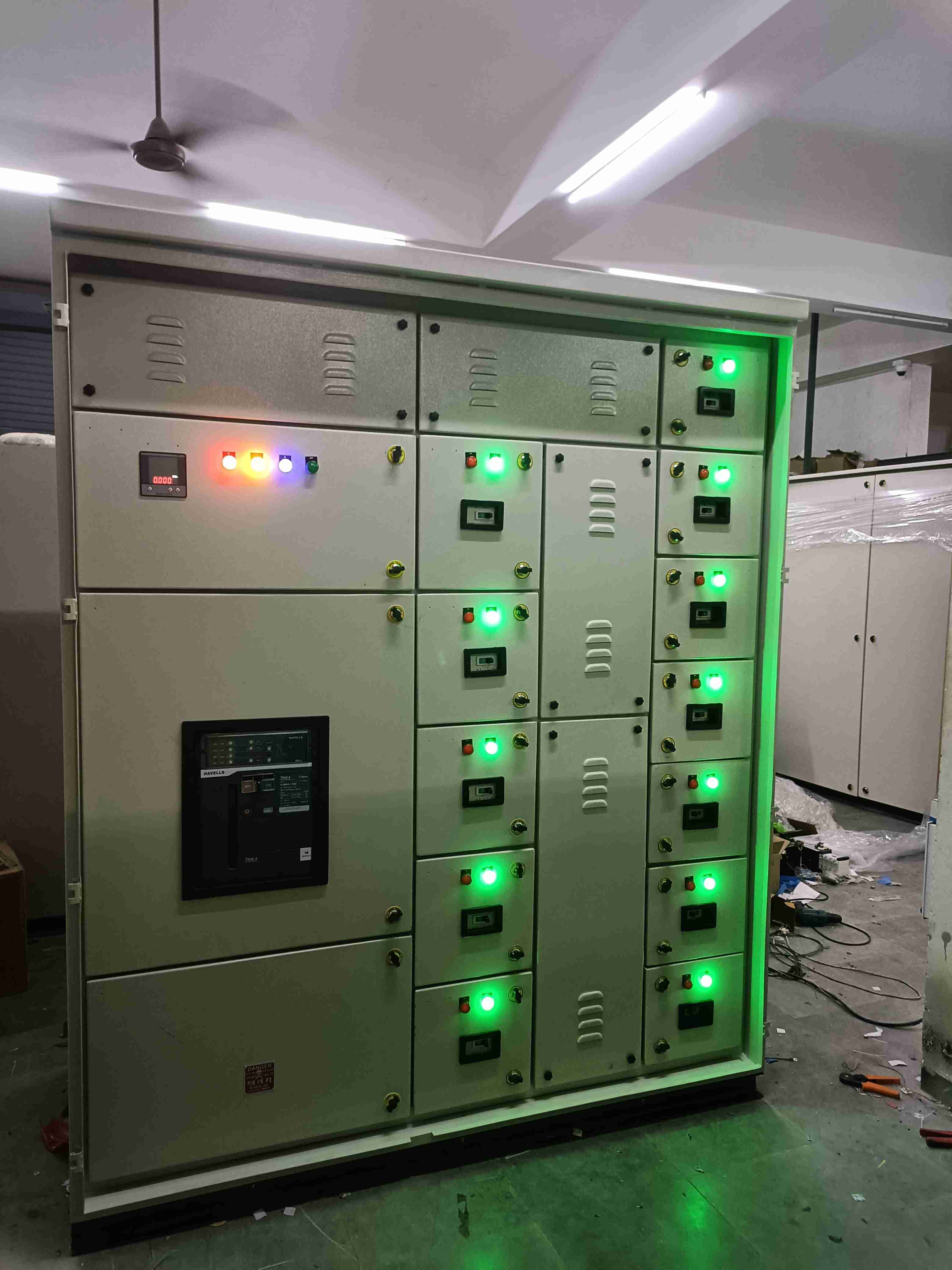

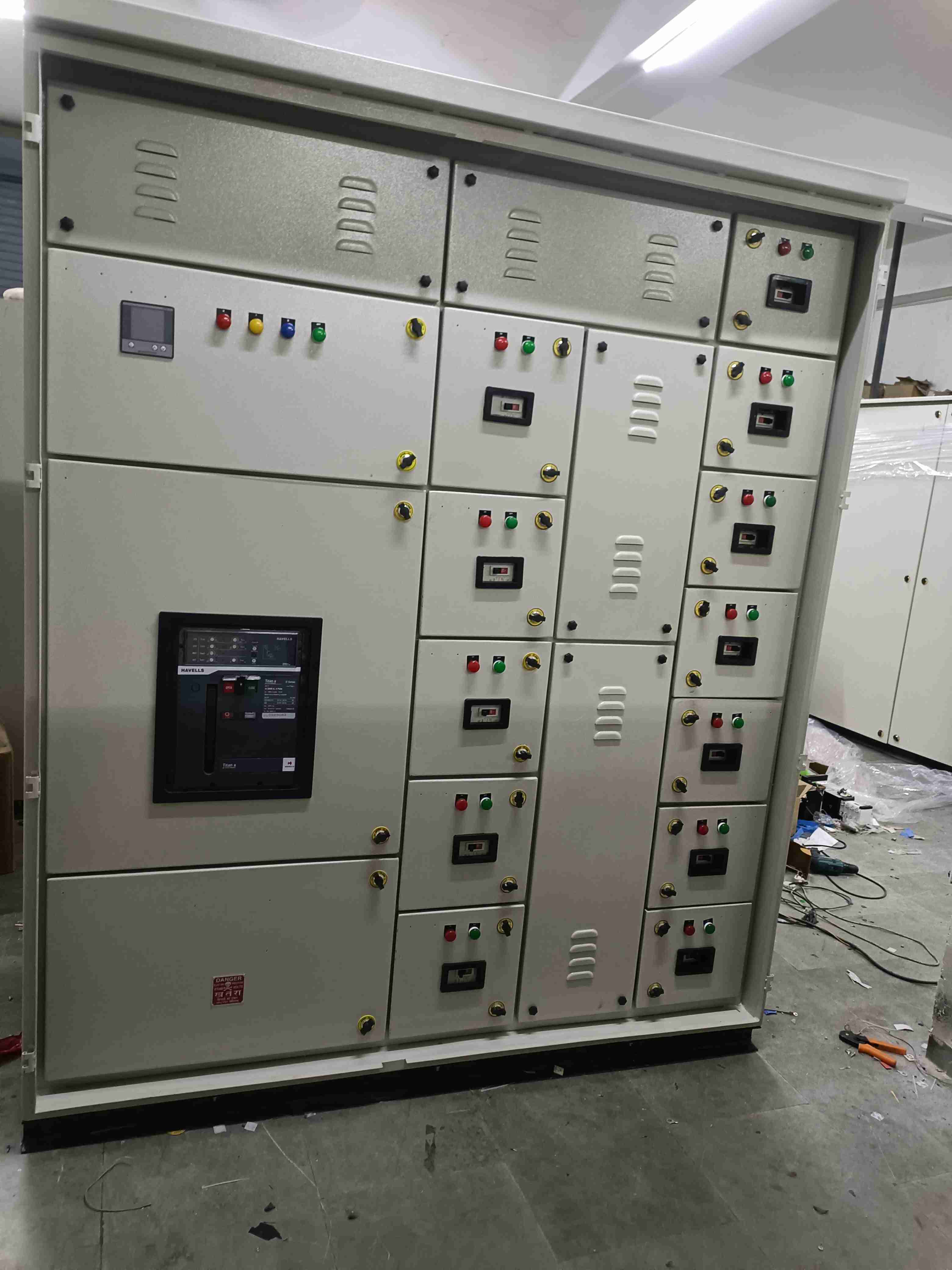

8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)

8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)

₹3,98,200.00
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
8996 (D'MAK ACBD/DCBD Panel- D'MAK/2024-25/8996)
New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

BOQ DESCRIPTIONMAKECATALOG NUMBERQTYAction
2000A 4P 50kA Frame Size: E MF ACB, Release: Microprocessor Release IPR E+, Type: Titania
HAVELLSIHAFE1E20011
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A22
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A11
6A 1P 10kA C-Curve MCB
DMAKDM1P655
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A11
Multifunction Meter, 3Ph, Acc. CL: 0.5, 6 digit 1 Line, 4 Digit 3 Line Red LED Display, CT Ratio Selectable upto 5/5 to 6000/5A AC, Parameters: V (P-P), V (P-N), Phase Current, KW, KWh, PF, KVA, KVAr, Hz, Load Hr/ No Load Hr., RPM, Voltage: 100-270V AC, Size: 96x96, Model: AVH-14
MULTISPAN/DMAKAVH-1411
2000/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 120mm.
REPUTEDN/A33
200A 4P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKDMC4P250M55
Spreader Terminals - 4 Pole (Set of 8)
DMAKN/A55
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A55
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A55
6A 1P 10kA C-Curve MCB
DMAKDM1P61010
125A 4P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKN/A66
Spreader Terminals - 4 Pole (Set of 8) for MCCB
DMAKN/A66
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A66
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A66
6A 1P 10kA C-Curve MCB
DMAKDM1P61212
63A 4P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKN/A11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A11
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
REPUTEDN/A11
6A 1P 10kA C-Curve MCB
DMAKDM1P622
