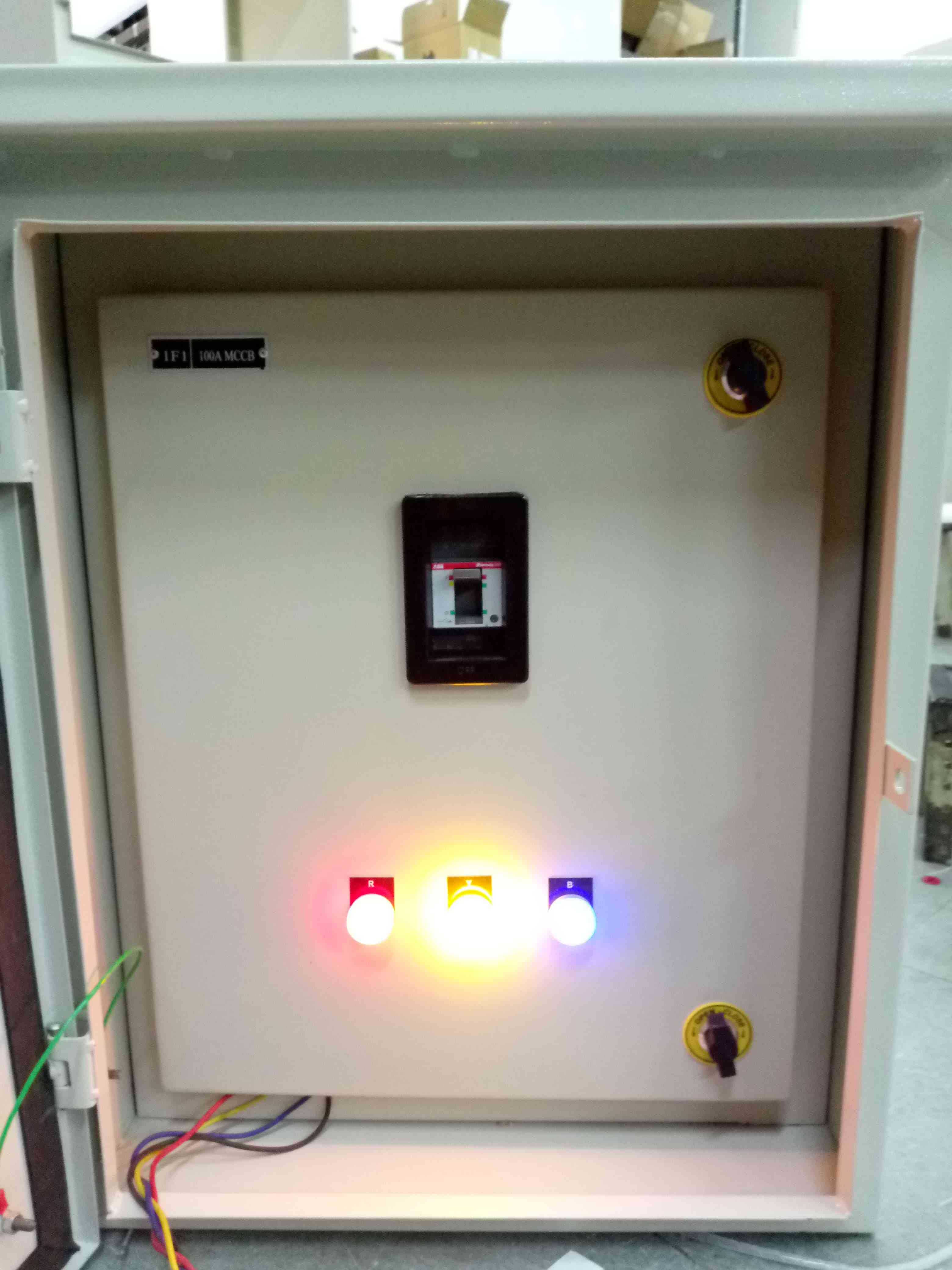

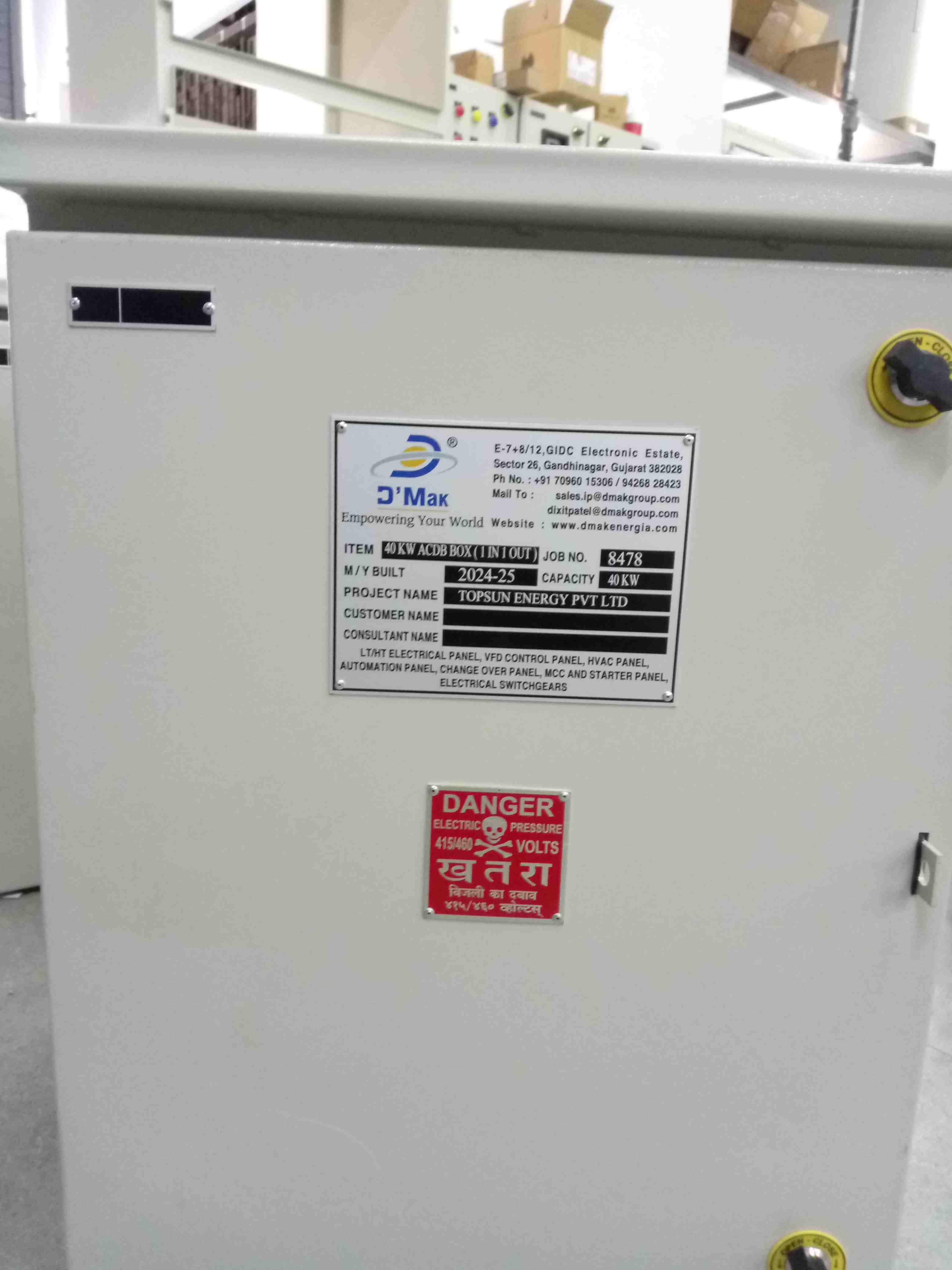

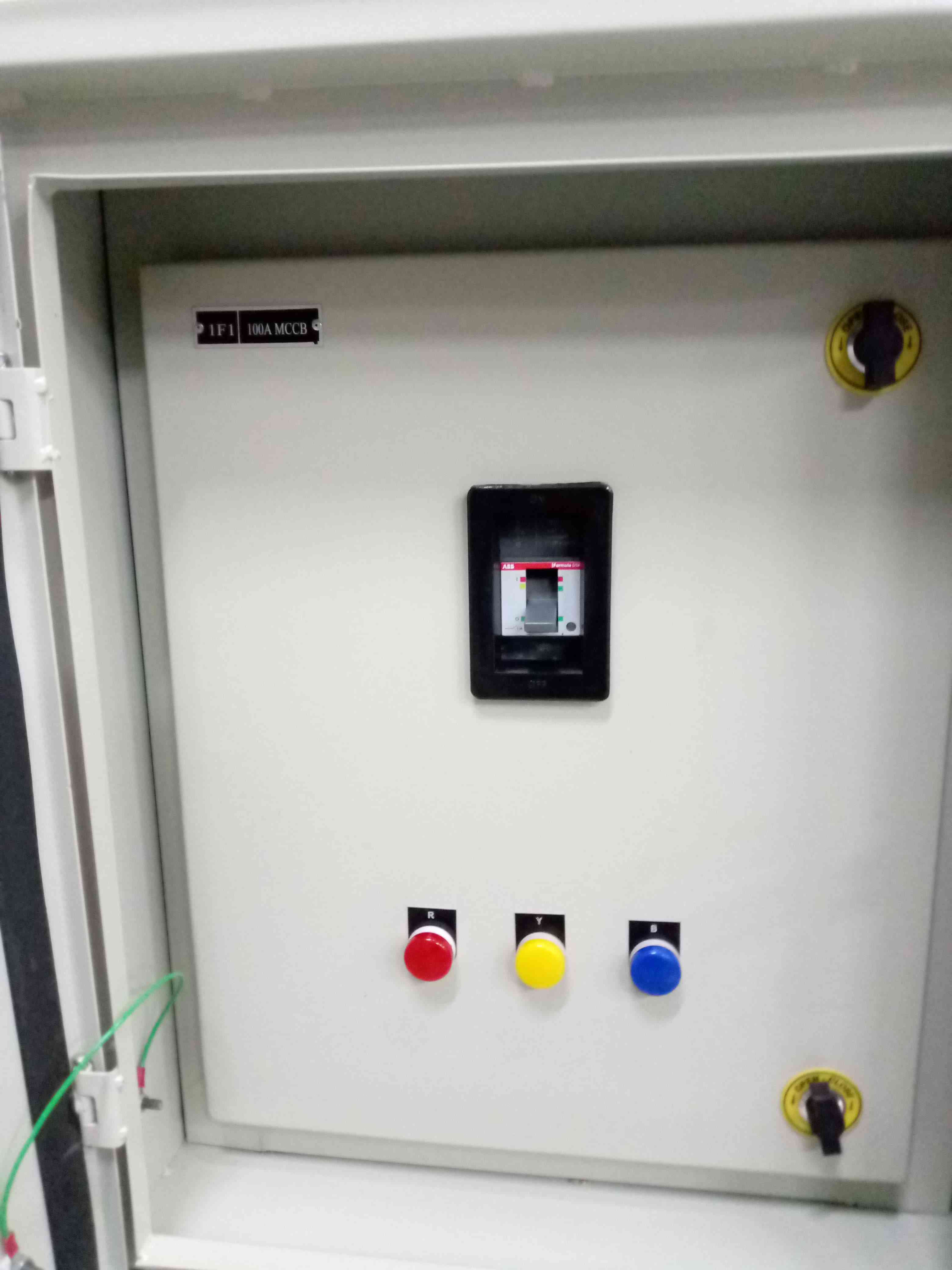

ACDB And DCDB Panels mean AC DC Distribution Panel Board that controls the AC power from PCU, and will have necessary surge arrestors. SOLAR energy is a part of solar power plant. When sunlight is incident on the solar array, the present and voltage is generated within the terminals of photovoltaic cell.

Construction Details

• Modular / Non- compartmentalised construction.
• Panel structure with MS CRCA/SS.
• Indoor / Outdoor type Structure.
• Single front/double front Operated.
• Provision for Extensible for future use.
• Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
• Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

• Three Tank / Seven Tank Pre treatment process
• Final paint shade as per IS or client specifications
• Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

• Electrical Grade Aluminum / Copper Busbar
• Main busbar chamber at top / bottom of the Panel
• Separate chamber for vertical dropper
• Busbar supports of SMC/DMC Material
• Busbar System design on basis of continuous Current rating and Fault level with stand capacity
• Allowable temperature rise as per IS 8623 or as per specifications
• Top / Bottom cable entry. Detachable gland plate for cable entry

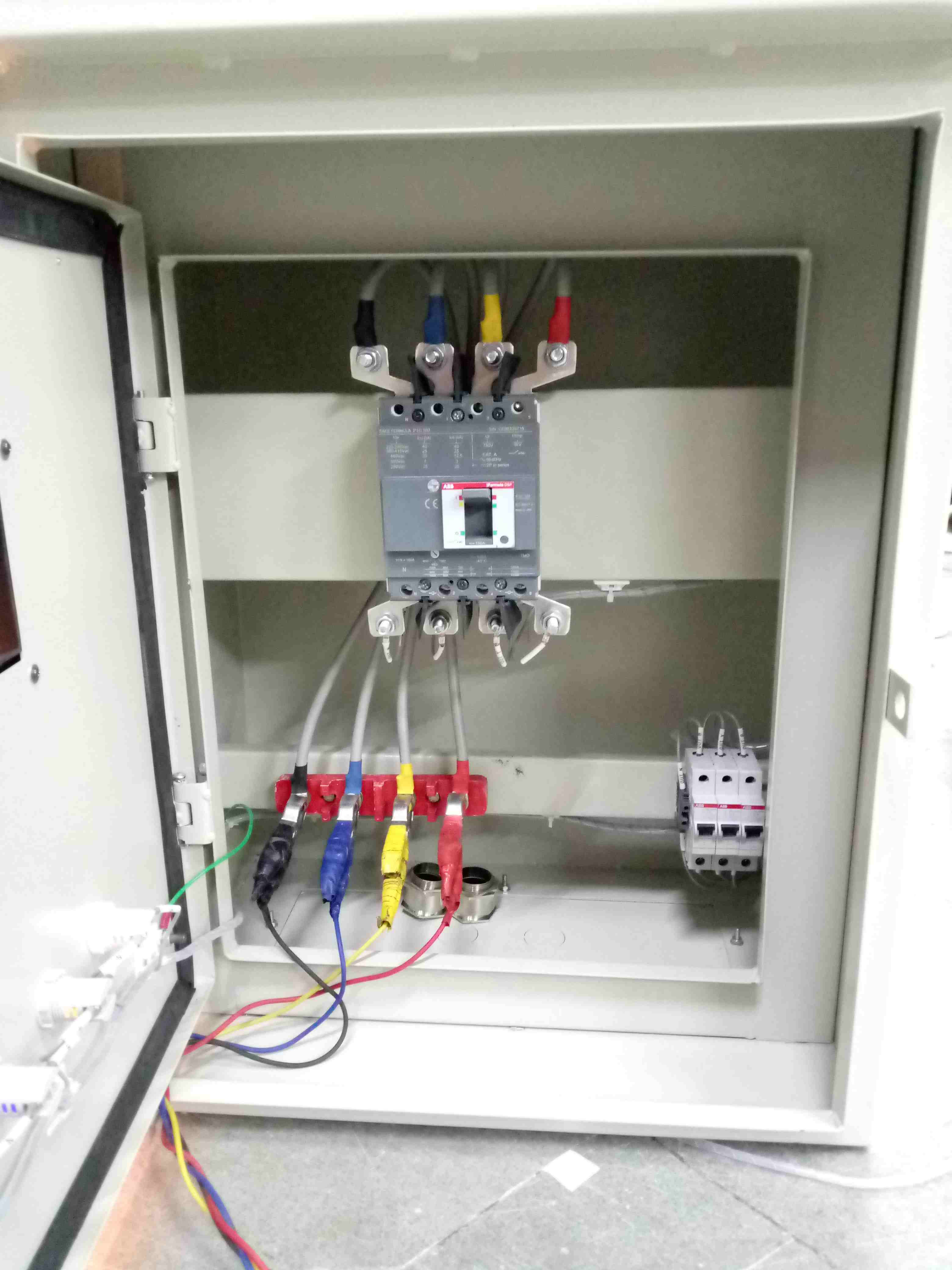

Assembly & Wiring

• Selection of components from Approved / Reputed vendor list as per Approved Drawing
• Design of Internal Layout fo optimum usage of space
• Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
• Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

• Inspection of Fabrication structure for dimension as per approved G.A. drawing
• Inspection of Painting / Powder coating
