Power Distribution Panel

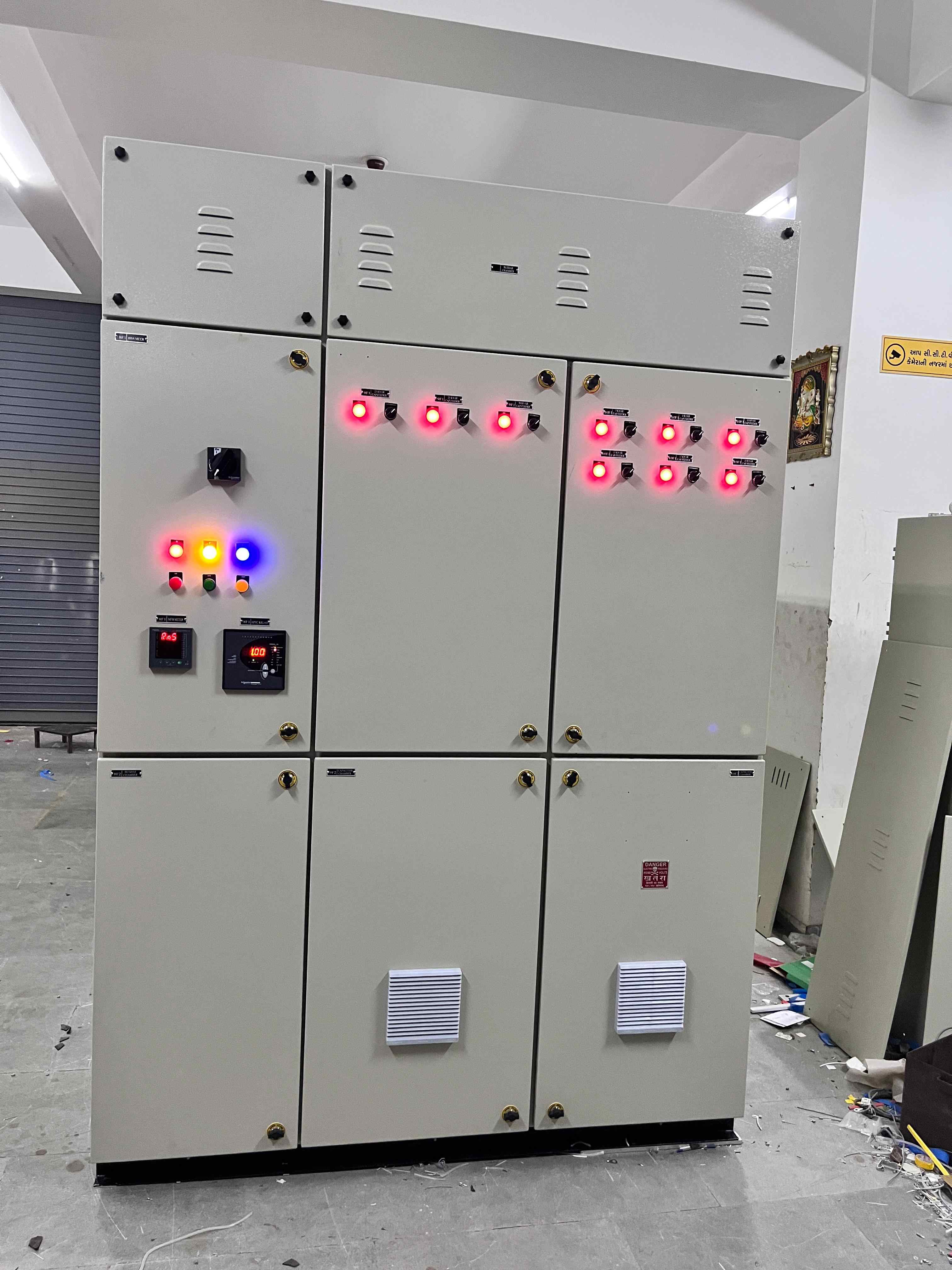

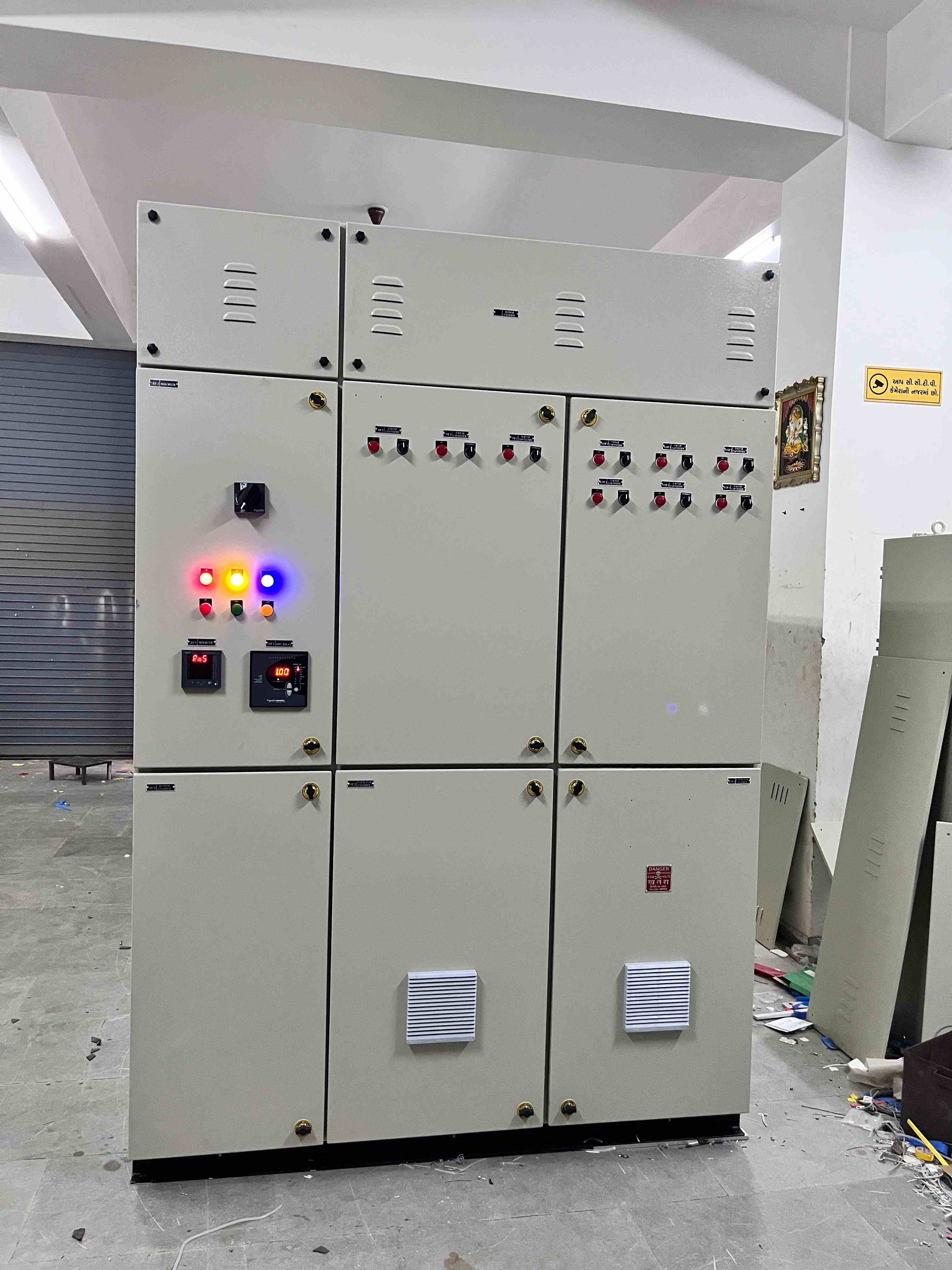

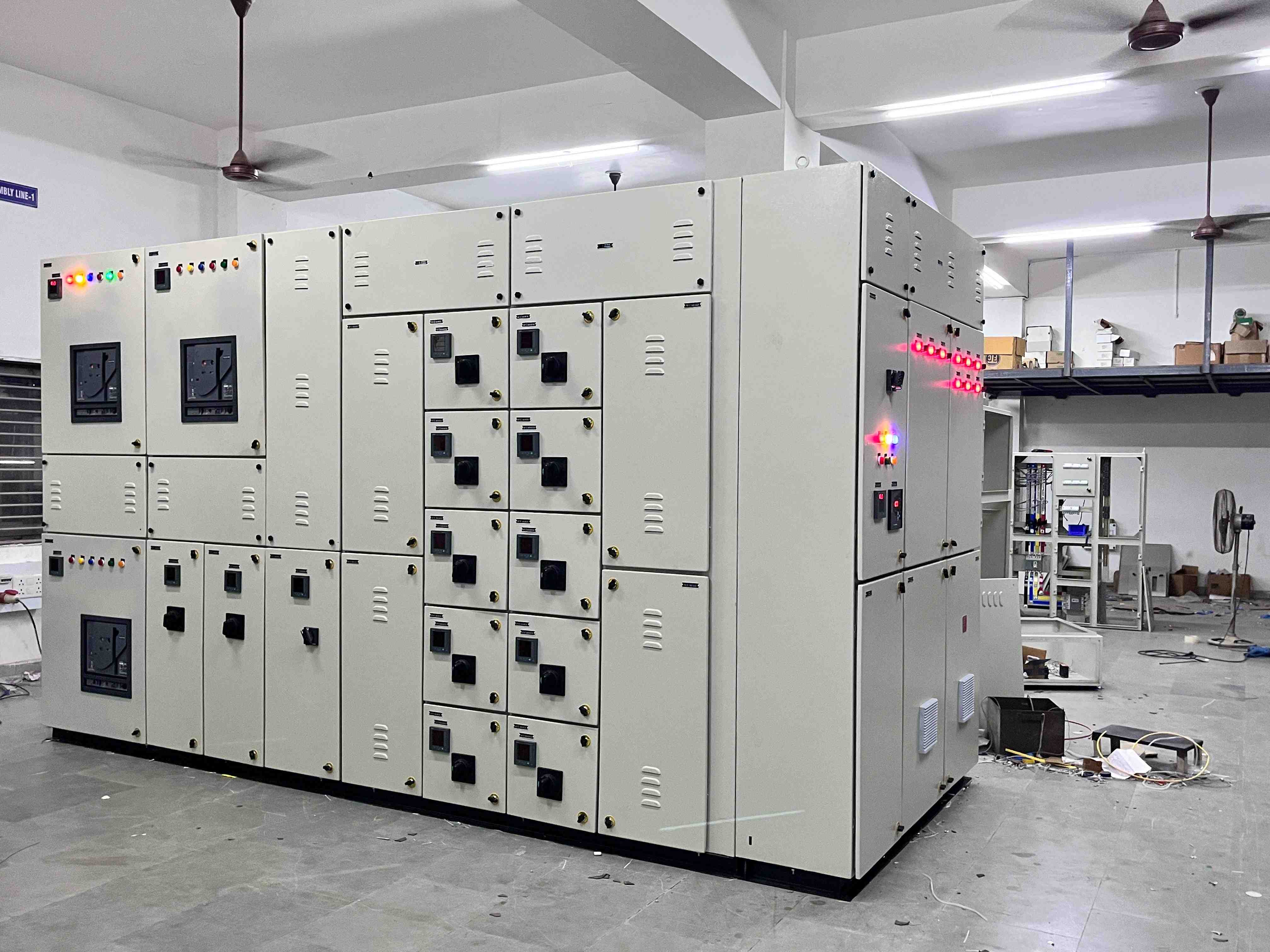

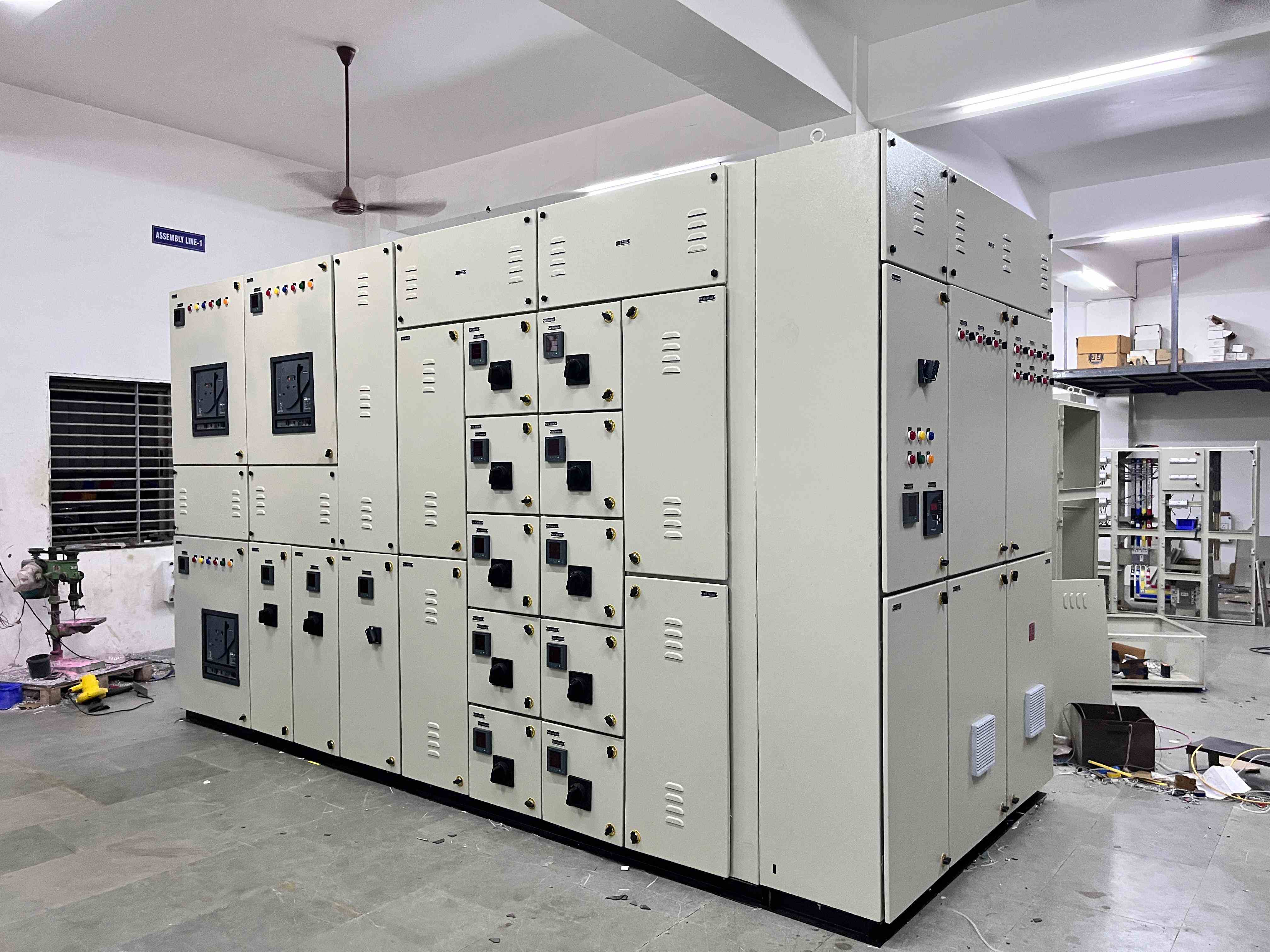

7436 (D'MAK Power Distribution Panel- D'MAK/2024-25/7436)

New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

Panel Components:

BOQ DESCRIPTION	MAKE	CATALOG NUMBER	QTY	Action

1250A 4P 50kA Frame Size: 2 MDO ACB, Release: Microprocessor based ET2L Trip Unit (without display), Type: EasyPact MVS	SCHNEIDER	MVS12N4MW2L	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Digital Earth leakage Unit	VERITEK	VIPS 98P	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
1250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	4	4
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
800A 4P 50kA Frame Size: 1 EDO ACB, Release: Microprocessor based ET6G Trip Unit, Type: EasyPact SPS	SCHNEIDER	SPS08F4PEW6L	1	1
Earth Fault Unit	VERITEK	VIPS EFR	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
800/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 120mm.	REPUTED	N/A	3	3
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
1250A 4P 50kA Frame Size: 2 MDO ACB, Release: Microprocessor based ET2L Trip Unit (without display), Type: EasyPact MVS	SCHNEIDER	MVS12N4MW2L	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Digital Earth leakage Unit	VERITEK	VIPS 98P	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
1250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
630A 4P 36kA MCCB with Microprocessor Based ETS 6 Trip Unit (built in LSIG protection),Type: EasyPact CVS	SCHNEIDER	LV563630	1	1
Standard extended rotary handle for EasyPact CVS 400/630A	SCHNEIDER	LV432598_IN	1	1
Spreader Links (Set of 4) 4P for EasyPact CVS 630A	SCHNEIDER	LV432493	2	2
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
600/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
250A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4250	1	1
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	2
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
200A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4200	1	5
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	10
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	5
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	5
200/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	15
160A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4160	1	6
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	12
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	6
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	6
160/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	18
400A 4P 36kA MCCB,TMD Release,Type: EasyPact CVS	SCHNEIDER	LV540309	1	1
Standard extended rotary handle for EasyPact CVS 400/630A	SCHNEIDER	LV432598_IN	1	1
Spreader Links (Set of 4) 4P for EasyPact CVS 400A	SCHNEIDER	32493	2	2
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
400/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
2A 3P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N3P02C	1	1
6A 3P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N3P06C	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
12 Step, 440V AC, 5A RT12 APFC Relay, Type: Varlogic	SCHNEIDER	51213	1	1
8"FAN WITH FILTER	STD	N/A	2	2
Auxiliary Contacts (Changeover) Multifunction, OF or SD or SDE or SDV for EasyPact CVS 100-630A	SCHNEIDER	29450	1	1
50kVAr MPP- Heavy Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCHDY500A44	1	1
125A 3P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N3125	1	1
Spreader (Set of 3) 3P for EZC 100	SCHNEIDER	EZASPDR3P	2	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	1
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	1
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	1
63A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3063	1	3
25kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY250A44	1	3
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	3
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	3
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	3
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	3
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	3
32A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3032	1	2
15kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY150A44	1	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	2
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	2
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	2
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	2
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	2
25A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3025	1	1
10kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY100A44	1	1
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	1
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	1
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	1
5kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY050A44	1	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	2
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	2
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	2
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	2
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	2
25A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3025	1	2

MCC Panel Technical Features:

LT Panel is an electrical distribution board that receives power from a electricity board and distributes the same to various electronic devices and distribution boards. Such panels are used in industries both for internal and external use and, therefore, they are quite rugged to withstand different climatic conditions.

Construction Details

Modular / Non- compartmentalised construction.
Panel structure with MS CRCA/SS.
Indoor / Outdoor type Structure.
Single front/double front Operated.
Provision for Extensible for future use.
Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

Three Tank / Seven Tank Pre treatment process
Final paint shade as per IS or client specifications
Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

Electrical Grade Aluminum / Copper Busbar
Main busbar chamber at top / bottom of the Panel
Separate chamber for vertical dropper
Busbar supports of SMC/DMC Material
Busbar System design on basis of continuous Current rating and Fault level with stand capacity
Allowable temperature rise as per IS 8623 or as per specifications
Top / Bottom cable entry. Detachable gland plate for cable entry

Assembly & Wiring

Selection of components from Approved / Reputed vendor list as per Approved Drawing
Design of Internal Layout fo optimum usage of space
Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

Inspection of Fabrication structure for dimension as per approved G.A. drawing
Inspection of Painting / Powder coating

7436 (D'MAK Power Distribution Panel- D'MAK/2024-25/7436)

₹16,64,300.00

New

Panel Components

MCC Panel Technical Features

BOQ DESCRIPTION	MAKE	CATALOG NUMBER	QTY	Action

1250A 4P 50kA Frame Size: 2 MDO ACB, Release: Microprocessor based ET2L Trip Unit (without display), Type: EasyPact MVS	SCHNEIDER	MVS12N4MW2L	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Digital Earth leakage Unit	VERITEK	VIPS 98P	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
1250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	4	4
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
800A 4P 50kA Frame Size: 1 EDO ACB, Release: Microprocessor based ET6G Trip Unit, Type: EasyPact SPS	SCHNEIDER	SPS08F4PEW6L	1	1
Earth Fault Unit	VERITEK	VIPS EFR	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
800/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 120mm.	REPUTED	N/A	3	3
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
1250A 4P 50kA Frame Size: 2 MDO ACB, Release: Microprocessor based ET2L Trip Unit (without display), Type: EasyPact MVS	SCHNEIDER	MVS12N4MW2L	1	1
CBCT / ZCT – 210mm ID	VERITEK	VIPS CBCT 210	1	1
Digital Earth leakage Unit	VERITEK	VIPS 98P	1	1
16A 2 Ways 60 Deg. Spring Return - Pistol Grip Handle TNC Switch with 1 Trip + 1 Close contact	KAYCEE	UBCA01P006K142/N	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
1250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
Under Voltage Release (MN), 200/250V AC/DC for EasyPact MVS	SCHNEIDER	33671	1	1
Closing Release (XF), 200/250 V AC/DC for EasyPact MVS	SCHNEIDER	MVS15512	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
630A 4P 36kA MCCB with Microprocessor Based ETS 6 Trip Unit (built in LSIG protection),Type: EasyPact CVS	SCHNEIDER	LV563630	1	1
Standard extended rotary handle for EasyPact CVS 400/630A	SCHNEIDER	LV432598_IN	1	1
Spreader Links (Set of 4) 4P for EasyPact CVS 630A	SCHNEIDER	LV432493	2	2
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
600/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
250A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4250	1	1
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	2
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	1
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
250/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
200A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4200	1	5
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	10
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	5
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	5
200/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	15
160A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N4160	1	6
Spreader (Set of 4) 4P for EZC 250A	SCHNEIDER	EZESPDR4P	2	12
Extended rotary handle for EZC 250A	SCHNEIDER	EZEROTE	1	6
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	6
160/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	18
400A 4P 36kA MCCB,TMD Release,Type: EasyPact CVS	SCHNEIDER	LV540309	1	1
Standard extended rotary handle for EasyPact CVS 400/630A	SCHNEIDER	LV432598_IN	1	1
Spreader Links (Set of 4) 4P for EasyPact CVS 400A	SCHNEIDER	32493	2	2
Power & Energy Meter with RS 485 Port, Parameters: A, V, Hz, PF, Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power, Active energy, Acc. CL: 1, Voltage: 48-277V AC/ 48-277V DC, Size: 96X96, Model: PM1120H	SCHNEIDER	METSEPM1120HCL10RD	1	1
400/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 110mm.	REPUTED	N/A	3	3
2A 3P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N3P02C	1	1
6A 3P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N3P06C	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	2	2
Yellow Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV05MPN	1	1
Blue Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV06MPN	1	1
Amber Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV08MPN	1	1
Green Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV03MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	6	6
12 Step, 440V AC, 5A RT12 APFC Relay, Type: Varlogic	SCHNEIDER	51213	1	1
8"FAN WITH FILTER	STD	N/A	2	2
Auxiliary Contacts (Changeover) Multifunction, OF or SD or SDE or SDV for EasyPact CVS 100-630A	SCHNEIDER	29450	1	1
50kVAr MPP- Heavy Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCHDY500A44	1	1
125A 3P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC250N3125	1	1
Spreader (Set of 3) 3P for EZC 100	SCHNEIDER	EZASPDR3P	2	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	1
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	1
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	1
63A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3063	1	3
25kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY250A44	1	3
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	3
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	3
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	3
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	3
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	3
32A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3032	1	2
15kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY150A44	1	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	2
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	2
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	2
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	2
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	2
25A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3025	1	1
10kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY100A44	1	1
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	1
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	1
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	1
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	1
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	1
5kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz	SCHNEIDER	MEHVCSDY050A44	1	2
Red Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNRPD1	1	2
Green Projecting Head(Push Function) Push Button 22.5 mm	ESBEE/REPUTED	EMNGPD1	1	2
Black 2P 2-Position Non Spring Return Symmetric Head Selector Switch	ESBEE/REPUTED	EP09SK00C0000	1	2
Red Direct Integral LED indicating lamp,Voltage: 230V AC	SCHNEIDER	XB7EV04MPN	1	2
6A 1P 10kA C-Curve MCB,Type: xC60	SCHNEIDER	A9N1P06C	1	2
25A 3P 30kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC	SCHNEIDER	EZC100H3025	1	2
