Power Distribution Panel

7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)

7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)

7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

Panel Components:

BOQ DESCRIPTIONMAKECATALOG NUMBERQTYAction
200A 4P 25kA MCCB,TMD Release,Type: EasyPact CVS
SCHNEIDERLV52531212
Under Voltage, Voltage: Release 220-240V AC 50/60Hz for EasyPact CVS
SCHNEIDERLV42940712
Standard extended rotary handle for EasyPact CVS 100/160/250A
SCHNEIDERLV429338_IN12
Spreaders (Set of 4) 4P for EasyPact CVS 100/160/250A
SCHNEIDERLV43156424
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R24
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y12
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B12
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G12
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-A12
200/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
P TECHN/A36
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91
DMAKDMAK AM-9112
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91
DMAKDMAK VM-9112
MFM METER
DMAKDMAK VAF-9912
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.
KAYCEEN3R39AP12
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.
KAYCEEN2R39VP12
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C612
FEEDER NAME
B/C11N/A
200A 4P 25kA MCCB,TMD Release,Type: EasyPact CVS
SCHNEIDERLV52531211
Under Voltage, Voltage: Release 220-240V AC 50/60Hz for EasyPact CVS
SCHNEIDERLV42940711
Standard extended rotary handle for EasyPact CVS 100/160/250A
SCHNEIDERLV429338_IN11
Spreaders (Set of 4) 4P for EasyPact CVS 100/160/250A
SCHNEIDERLV43156422
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G11
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C22
FEEDER NAME
O/G11N/A
63A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P63C1313
40A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P40C22
FEEDER NAME
APFC I/C11N/A
63A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P63C11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
60/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
P TECHN/A44
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91
DMAKDMAK AM-9111
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91
DMAKDMAK VM-9111
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.
KAYCEEN3R39AP11
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.
KAYCEEN2R39VP11
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C33
6 Step, 440V AC, 5A RT6 APFC Relay, Type: Varlogic
SCHNEIDER5120711
FAN WITH FILTER
REPUTEDN/A11
FEEDER NAME
10KVAR CAP. BANK11N/A
25A 3P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N3P25C11
5kVAr, 3Ph, Splendid Duty, Cylindrical Type, 440V AC Capacitor
HAVELLSQHUTCC5005X022
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G11
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3111
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4211
1NO Contact Block
JIGOJG-ZBE-10111
1NC Contact Block
JIGOJG-ZBE-10211
2-Position Metallic Selector Switch
JIGOJG-BD2111
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C11
FEEDER NAME
5KVAR CAP. BANK12N/A
16A 3P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N3P16C12
5kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz
SCHNEIDERMEHVCSDY050A4412
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R12
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G12
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3112
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4212
1NO Contact Block
JIGOJG-ZBE-10112
1NC Contact Block
JIGOJG-ZBE-10212
2-Position Metallic Selector Switch
JIGOJG-BD2112
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C12
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelCompartmentalizedN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 1500mmWidth : 2000mmDepth: 450mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 25X10X1NBB: 25X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm120168.8
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)19210
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm4.380
N/AWires - 1 sq. mm5.5920
N/AWires - 1.5 sq. mm8.2820
N/AWires - 2.5 sq. mm13.1420
WIRES
N/AWires - 4 sq. mm19.770
N/AWires - 6 sq. mm260
N/AWires - 10 sq. mm450
N/AWires - 16 sq. mm650
N/AWires - 25 sq. mm1080
N/AWires - 35 sq. mm15659.5
N/AWires - 50 sq. mm2150
N/AWires - 70 sq. mm3100
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2530
N/AInsulated Ring Type - 2.5 sq. mm1.68
N/AInsulated Ring Type - 4/6 sq. mm1.78
N/ARing Type - 10 sq. mm2.564
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55001.25
N/AInsulator 30*8 mm108
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm221.6
N/ATie 100mm141.5
N/ATie 150mm351
N/AEnd lock320
N/ASpiral 6mm801
N/ADIN Rail Channel283.5
N/ASleeves 50mm1011
N/Agromet36
N/A16KUT16.560
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301.5
N/ATaperoll1014
N/ATie Mount501.5
N/AQ Hook 10mm232
N/ALabels2001
N/AHardware1501.5
N/AMCCB Cover140
N/APVC CHANNEL 25 X 25351.25
N/APVC Channel 45x45650
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
SWITCHBOARD/PANEL NAME
200A MCCB BOXBOARD QTYN/AN/A
FEEDER NAME
I/C11N/A
200A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC
SCHNEIDEREZC250N420011
Spreader (Set of 4) 4P for EZC 250A
SCHNEIDEREZESPDR4P22
Extended rotary handle for EZC 250A
SCHNEIDEREZEROTE11
Shunt Release, Voltage: 200-277V AC for EZC 250
SCHNEIDEREZESHT200AC11
Analog Earth Leakage Unit
VERITEKVIPS 9811
CBCT / ZCT – 120mm ID
VERITEKVIPS CBCT 12011
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 750mmWidth : 300mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 25X10X1NBB: 25X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm12016.2
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1920
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm4.380
N/AWires - 1 sq. mm5.590
N/AWires - 1.5 sq. mm8.280
N/AWires - 2.5 sq. mm13.140
WIRES
N/AWires - 4 sq. mm19.770
N/AWires - 6 sq. mm260
N/AWires - 10 sq. mm450
N/AWires - 16 sq. mm650
N/AWires - 25 sq. mm1080
N/AWires - 35 sq. mm1560
N/AWires - 50 sq. mm2150
N/AWires - 70 sq. mm3100
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.250
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.40
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.50
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.60
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.10
N/APin Type - 16 sq. mm50
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.250
N/AInsulated Ring Type - 2.5 sq. mm1.60
N/AInsulated Ring Type - 4/6 sq. mm1.70
N/ARing Type - 10 sq. mm2.50
N/ARing Type - 16 sq. mm5.50
N/ARing Type - 25 sq. mm90
N/ARing Type - 35 sq. mm170
LABOUR
N/AN/A55000.1
N/AInsulator 30*8 mm100
N/AGI Lock162
N/AKey132
N/AGasket 20x3 mm22.5
N/ATie 100mm140
N/ATie 150mm350
N/AEnd lock30
N/ASpiral 6mm800.1
N/ADIN Rail Channel280.1
N/ASleeves 50mm100
N/A63A 4-way Motor Termial220
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll101
N/ATie Mount500
N/AQ Hook 10mm232
N/ALabels2000.1
N/AHardware1500.15
N/AMCCB Cover140
N/APVC CHANNEL 25 X 25350
N/APVC Channel 45x45650
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A

MCC Panel Technical Features:

LT Panel is an electrical distribution board that receives power from a electricity board and distributes the same to various electronic devices and distribution boards. Such panels are used in industries both for internal and external use and, therefore, they are quite rugged to withstand different climatic conditions.

Construction Details

  • Modular / Non- compartmentalised construction.
  • Panel structure with MS CRCA/SS.
  • Indoor / Outdoor type Structure.
  • Single front/double front Operated.
  • Provision for Extensible for future use.
  • Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
  • Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

  • Three Tank / Seven Tank Pre treatment process
  • Final paint shade as per IS or client specifications
  • Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

  • Electrical Grade Aluminum / Copper Busbar
  • Main busbar chamber at top / bottom of the Panel
  • Separate chamber for vertical dropper
  • Busbar supports of SMC/DMC Material
  • Busbar System design on basis of continuous Current rating and Fault level with stand capacity
  • Allowable temperature rise as per IS 8623 or as per specifications
  • Top / Bottom cable entry. Detachable gland plate for cable entry

Assembly & Wiring

  • Selection of components from Approved / Reputed vendor list as per Approved Drawing
  • Design of Internal Layout fo optimum usage of space
  • Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
  • Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

  • Inspection of Fabrication structure for dimension as per approved G.A. drawing
  • Inspection of Painting / Powder coating

7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)

₹92,291.00
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
7086 (D'MAK Power Distribution Panel- D'MAK/2022-23/7086)
New

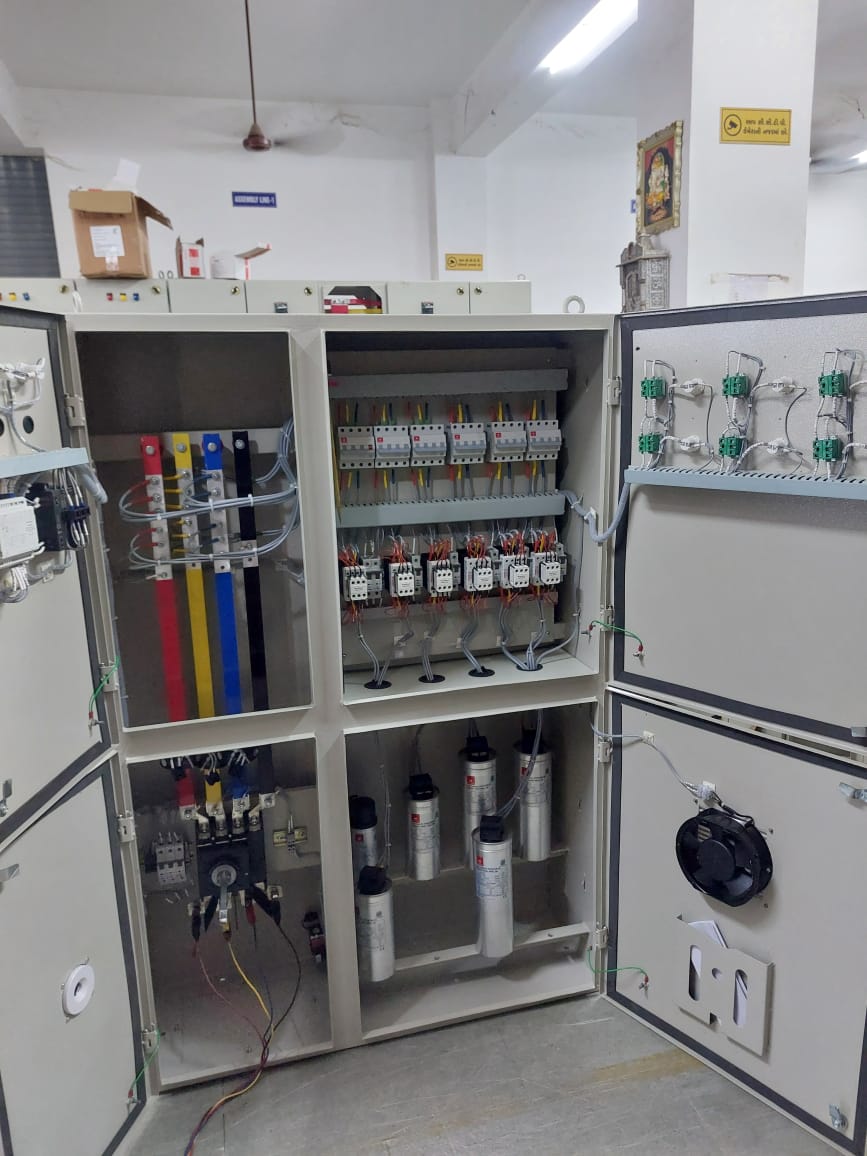

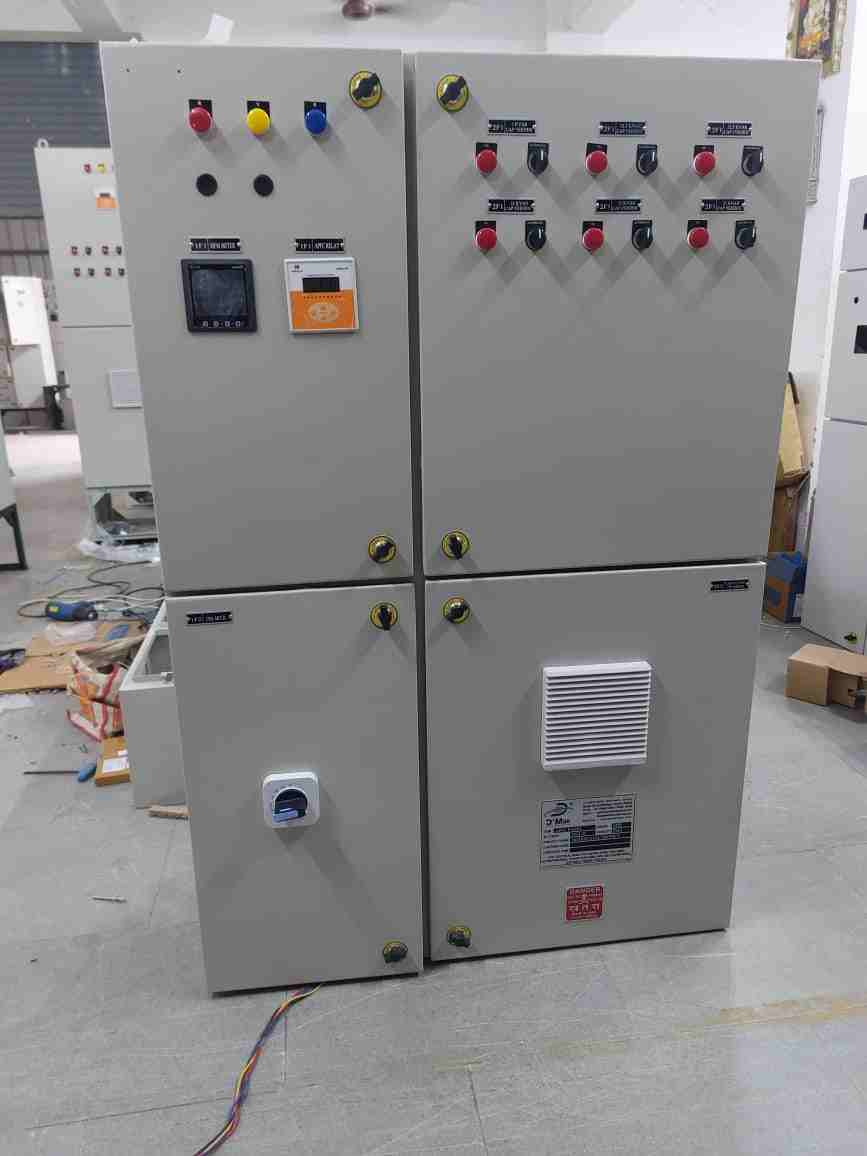

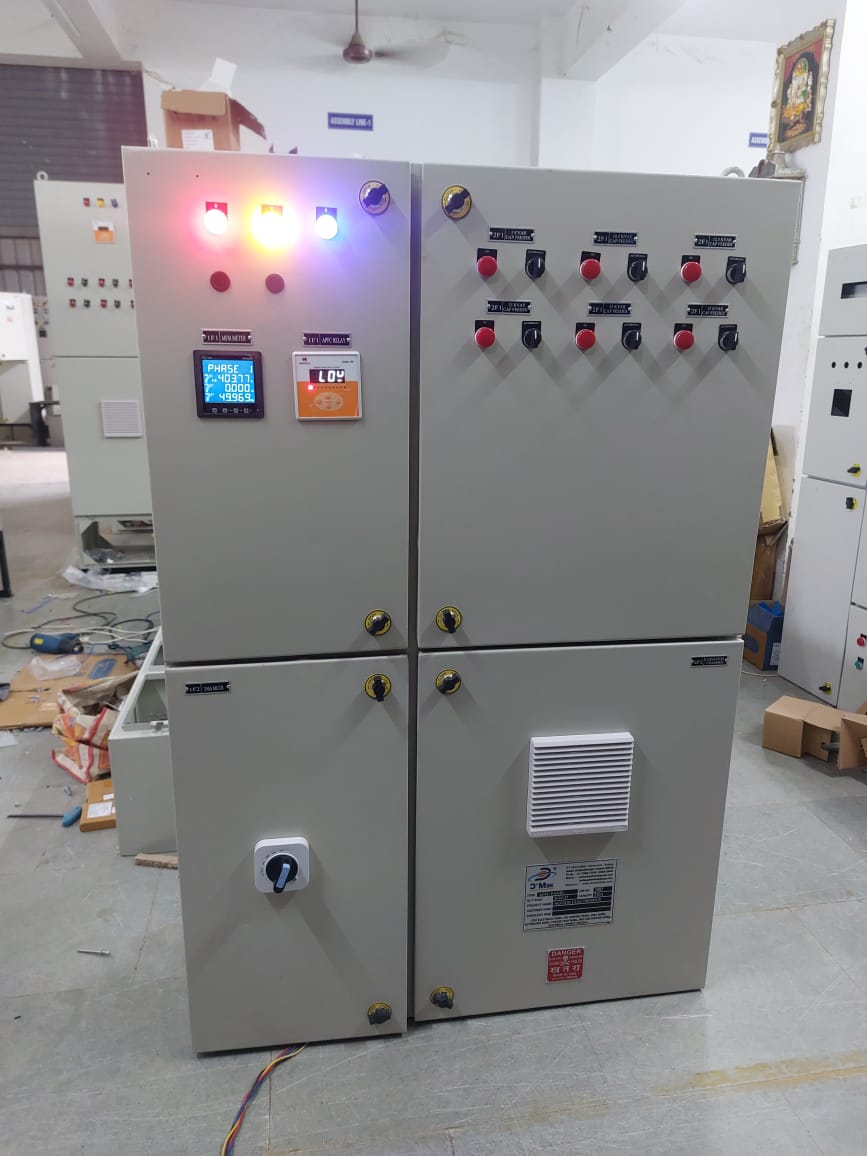

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

BOQ DESCRIPTIONMAKECATALOG NUMBERQTYAction
200A 4P 25kA MCCB,TMD Release,Type: EasyPact CVS
SCHNEIDERLV52531212
Under Voltage, Voltage: Release 220-240V AC 50/60Hz for EasyPact CVS
SCHNEIDERLV42940712
Standard extended rotary handle for EasyPact CVS 100/160/250A
SCHNEIDERLV429338_IN12
Spreaders (Set of 4) 4P for EasyPact CVS 100/160/250A
SCHNEIDERLV43156424
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R24
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y12
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B12
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G12
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-A12
200/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
P TECHN/A36
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91
DMAKDMAK AM-9112
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91
DMAKDMAK VM-9112
MFM METER
DMAKDMAK VAF-9912
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.
KAYCEEN3R39AP12
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.
KAYCEEN2R39VP12
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C612
FEEDER NAME
B/C11N/A
200A 4P 25kA MCCB,TMD Release,Type: EasyPact CVS
SCHNEIDERLV52531211
Under Voltage, Voltage: Release 220-240V AC 50/60Hz for EasyPact CVS
SCHNEIDERLV42940711
Standard extended rotary handle for EasyPact CVS 100/160/250A
SCHNEIDERLV429338_IN11
Spreaders (Set of 4) 4P for EasyPact CVS 100/160/250A
SCHNEIDERLV43156422
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G11
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C22
FEEDER NAME
O/G11N/A
63A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P63C1313
40A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P40C22
FEEDER NAME
APFC I/C11N/A
63A 4P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N4P63C11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
60/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
P TECHN/A44
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91
DMAKDMAK AM-9111
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91
DMAKDMAK VM-9111
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.
KAYCEEN3R39AP11
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.
KAYCEEN2R39VP11
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C33
6 Step, 440V AC, 5A RT6 APFC Relay, Type: Varlogic
SCHNEIDER5120711
FAN WITH FILTER
REPUTEDN/A11
FEEDER NAME
10KVAR CAP. BANK11N/A
25A 3P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N3P25C11
5kVAr, 3Ph, Splendid Duty, Cylindrical Type, 440V AC Capacitor
HAVELLSQHUTCC5005X022
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G11
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3111
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4211
1NO Contact Block
JIGOJG-ZBE-10111
1NC Contact Block
JIGOJG-ZBE-10211
2-Position Metallic Selector Switch
JIGOJG-BD2111
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C11
FEEDER NAME
5KVAR CAP. BANK12N/A
16A 3P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N3P16C12
5kVAr MPP- Standard Duty 3Ph Cylindrical Type Capacitor, Voltage: 440V AC50Hz
SCHNEIDERMEHVCSDY050A4412
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R12
Green Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-G12
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3112
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4212
1NO Contact Block
JIGOJG-ZBE-10112
1NC Contact Block
JIGOJG-ZBE-10212
2-Position Metallic Selector Switch
JIGOJG-BD2112
6A 1P 10kA C-Curve MCB,Type: xC60
SCHNEIDERA9N1P06C12
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelCompartmentalizedN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 1500mmWidth : 2000mmDepth: 450mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 25X10X1NBB: 25X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm120168.8
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)19210
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm4.380
N/AWires - 1 sq. mm5.5920
N/AWires - 1.5 sq. mm8.2820
N/AWires - 2.5 sq. mm13.1420
WIRES
N/AWires - 4 sq. mm19.770
N/AWires - 6 sq. mm260
N/AWires - 10 sq. mm450
N/AWires - 16 sq. mm650
N/AWires - 25 sq. mm1080
N/AWires - 35 sq. mm15659.5
N/AWires - 50 sq. mm2150
N/AWires - 70 sq. mm3100
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2530
N/AInsulated Ring Type - 2.5 sq. mm1.68
N/AInsulated Ring Type - 4/6 sq. mm1.78
N/ARing Type - 10 sq. mm2.564
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55001.25
N/AInsulator 30*8 mm108
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm221.6
N/ATie 100mm141.5
N/ATie 150mm351
N/AEnd lock320
N/ASpiral 6mm801
N/ADIN Rail Channel283.5
N/ASleeves 50mm1011
N/Agromet36
N/A16KUT16.560
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301.5
N/ATaperoll1014
N/ATie Mount501.5
N/AQ Hook 10mm232
N/ALabels2001
N/AHardware1501.5
N/AMCCB Cover140
N/APVC CHANNEL 25 X 25351.25
N/APVC Channel 45x45650
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
SWITCHBOARD/PANEL NAME
200A MCCB BOXBOARD QTYN/AN/A
FEEDER NAME
I/C11N/A
200A 4P 25kA MCCB,TMD (Fixed Thermal Magnetic) Release,Type: EasyPact EZC
SCHNEIDEREZC250N420011
Spreader (Set of 4) 4P for EZC 250A
SCHNEIDEREZESPDR4P22
Extended rotary handle for EZC 250A
SCHNEIDEREZEROTE11
Shunt Release, Voltage: 200-277V AC for EZC 250
SCHNEIDEREZESHT200AC11
Analog Earth Leakage Unit
VERITEKVIPS 9811
CBCT / ZCT – 120mm ID
VERITEKVIPS CBCT 12011
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 750mmWidth : 300mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 25X10X1NBB: 25X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm12016.2
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1920
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm4.380
N/AWires - 1 sq. mm5.590
N/AWires - 1.5 sq. mm8.280
N/AWires - 2.5 sq. mm13.140
WIRES
N/AWires - 4 sq. mm19.770
N/AWires - 6 sq. mm260
N/AWires - 10 sq. mm450
N/AWires - 16 sq. mm650
N/AWires - 25 sq. mm1080
N/AWires - 35 sq. mm1560
N/AWires - 50 sq. mm2150
N/AWires - 70 sq. mm3100
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.250
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.40
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.50
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.60
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.10
N/APin Type - 16 sq. mm50
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.250
N/AInsulated Ring Type - 2.5 sq. mm1.60
N/AInsulated Ring Type - 4/6 sq. mm1.70
N/ARing Type - 10 sq. mm2.50
N/ARing Type - 16 sq. mm5.50
N/ARing Type - 25 sq. mm90
N/ARing Type - 35 sq. mm170
LABOUR
N/AN/A55000.1
N/AInsulator 30*8 mm100
N/AGI Lock162
N/AKey132
N/AGasket 20x3 mm22.5
N/ATie 100mm140
N/ATie 150mm350
N/AEnd lock30
N/ASpiral 6mm800.1
N/ADIN Rail Channel280.1
N/ASleeves 50mm100
N/A63A 4-way Motor Termial220
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll101
N/ATie Mount500
N/AQ Hook 10mm232
N/ALabels2000.1
N/AHardware1500.15
N/AMCCB Cover140
N/APVC CHANNEL 25 X 25350
N/APVC Channel 45x45650
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
uspbar-years

15+ years

Expertise

projects-completed

5000+

Projects Completed

happy-clients

1 Million+

Happy clients

quality-service

100%

Quality service

logo

Established in 21st Century, D'MAK™ Group has highly qualified professionals who had adopted best technologies.

Contact Us

Call: +91 79849 79407

Call: +91 92653 01214

Customer Care:+91 70430 34626

(Mon to Sat 9.30 AM to 6 PM)

Email: sales.ip@dmakgroup.commarketing@dmakgroup.com

© 2024 D'Mak Energia. All Rights Reserved.

Developed by: Linearloop
