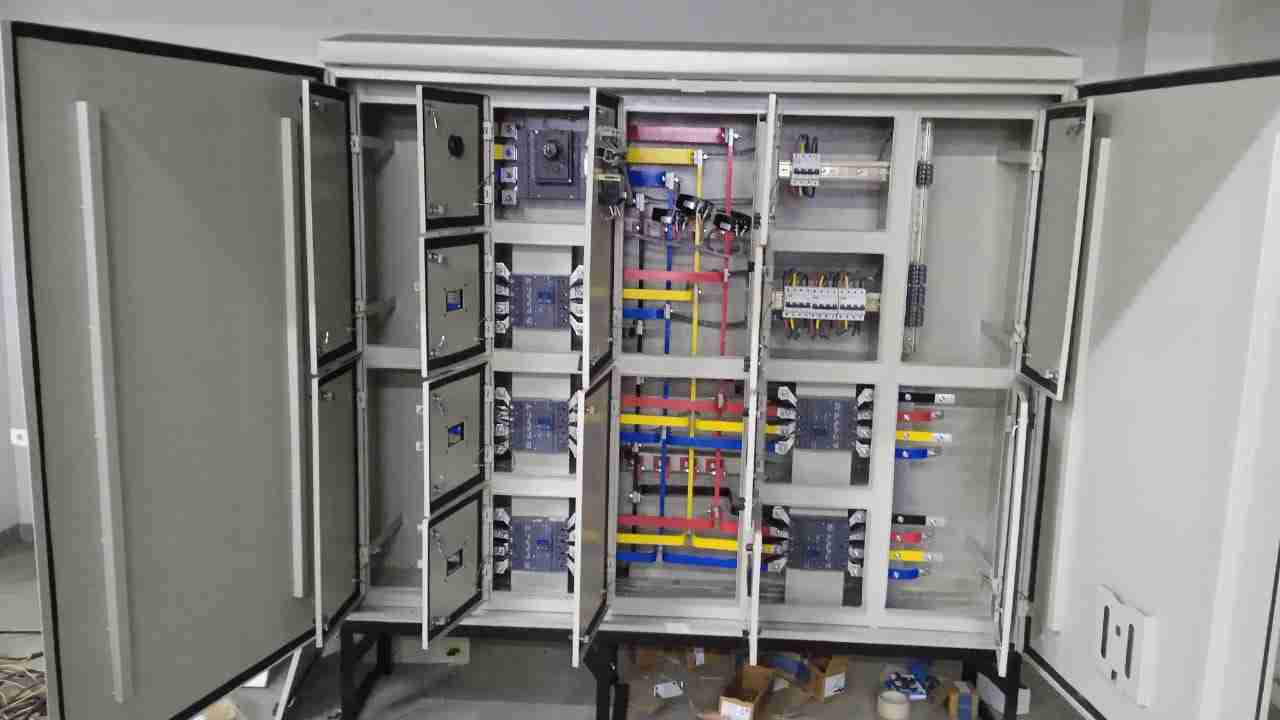

Power Control Center Panel (PCC)

4248.0 (D'MAK Power Control Center Panel (PCC)- D'MAK/2024-25/4248.0)

New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

Panel Components:

BOQ DESCRIPTION	MAKE	CATALOG NUMBER	QTY	Action

320A 4P 25kA MCCB, Release: TM Release(Adj. overload, Adj. short circuit), Type: P630	HAGER	HHJ321DR	1	1
Rotary Handle-Extended for MCCB Type: P630	HAGER	HXW031H	1	1
Spreader Terminals 4P (Set of 4) for MCCB Type: P630	HAGER	HYD015H	2	2
Auxiliary Contact for MCCB Type: P630	HAGER	HXA021H	1	1
400A 4P ATS, Open Execution	DMAK	DAT4P400	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	2	2
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
400/5A 10VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 30mm.	P TECH	N/A	3	3
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91	DMAK	DMAK AM-91	1	1
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91	DMAK	DMAK VM-91	1	1
Multifunction Meter with RS485, LED Display, 3Ph, Parameter: VAF + Power + PF + Current/Power Demand + RPM + THD + Min-Max + Active/Reactive/Apparent Imp/ Exp/Forwarded, Active Net, Imp/exp Gross, Acc. CL: 1, Aux. Supply: 40-300V AC/DC, Size: 96x96, Model: Elite 103	SECURE/DMAK	Elite103	1	1
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.	KAYCEE	N3R39AP	1	1
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.	KAYCEE	N2R39VP	1	1
6A 1P 10kA C-Curve MCB	HAGER	NCN106N	6	6
63A 4P 10kA C-Curve MCB	HAGER	NCN463N	1	1
12.5kA, 2P, Type 1 + 2 Surge Protection Device with Remote Signaling	HAGER	SPL212R	1	1
100A 4P 18kA MCCB, Release: TM Release(fixed overload, fixed short circuit) , Type: X160	HAGER	HDA101Z	1	1
125A 4P 18kA MCCB, Release: TM Release(fixed overload, fixed short circuit) , Type: X160	HAGER	HDA126Z	2	2
63A 4P 18kA MCCB, Release: TM Release(fixed overload, fixed short circuit) , Type: X160	HAGER	HDA064Z	6	6
63A 4P 10kA C-Curve MCB	HAGER	NCN463N	9	9
40A 4P 10kA C-Curve MCB	HAGER	NCN440N	3	3
25A 2P 10kA C-Curve MCB	HAGER	NCN225N	1	1
AC3: 25A 3P Power Contactor, Coil Voltage: 230V AC, Aux. contact: 1NO+1NC, Type: HWC-25	HAGER	EX002511D	1	1
Electro-Mechanical Time Switch, Quartz 1 channel 1 daily dial 3 module, Contact Rating: 16A AC1	HAGER	EHN111	1	1
63A 4P 18kA MCCB, Release: TM Release(fixed overload, fixed short circuit) , Type: X160	HAGER	HDA064Z	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
60/5A 5VA Acc. Cl: 5 Tape Insulated Ring Type Current Transformer, ID: 25mm.	P TECH	N/A	1	1
Ammeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK AM-91	DMAK	DMAK AM-91	1	1
Voltmeter, 1Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VM-91	DMAK	DMAK VM-91	1	1
Power Factor Meter, 3Ph - 3EL - 4W, Range : 1A/5A & 110V/230V/440V AC, Accuracy Class : (+)(-)2°, Size : 96x96, Model: AE 68302	AE	AE 68302	1	1
6A 3P Ammeter Selector Switch, 4 Position Current in each phase with OFF, used with CT, 90Deg.	KAYCEE	N3R39AP	1	1
6A 3P Voltmeter Selector Switch, 4 Position Voltage between phases with OFF, 90Deg.	KAYCEE	N2R39VP	1	1
FAN WITH AIR VENT	REPUTED	N/A	2	2
6A 1P 10kA C-Curve MCB	HAGER	NCN106N	4	4
40A 3P 10kA C-Curve MCB	HAGER	NCN340N	1	1
15kVAr 3Ph Normal Duty PhiCap-Cylindrical 440V AC Capacitor	EPCOS	B32344N4152A 40	1	1
16kVAr 3Ph Capacitor Duty Contactor, Voltage: 240V AC, Aux.Contacts: 1NO+1NC, Type: Standard series	EPCOS	B44066S1611C240	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Red Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
Green Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
1NO Contact Block	VALIYA	N/A	1	1
1NC Contact Block	VALIYA	N/A	1	1
2-Position Metallic Selector Switch	REPUTED	N/A	1	1
6A 1P 10kA C-Curve MCB	HAGER	NCN106N	1	1
32A 3P 10kA C-Curve MCB	HAGER	NCN332N	1	1
10kVAr 3Ph Normal Duty PhiCap-Cylindrical 440V AC Capacitor	EPCOS	B32344N4102A 40	1	1
10kVAr 3Ph Capacitor Duty Contactor, Voltage: 240V AC, Aux.Contacts: 1NO+1NC, Type: Standard series	EPCOS	B44066S1011C240	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Red Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
Green Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
1NO Contact Block	VALIYA	N/A	1	1
1NC Contact Block	VALIYA	N/A	1	1
2-Position Metallic Selector Switch	REPUTED	N/A	1	1
6A 1P 10kA C-Curve MCB	HAGER	NCN106N	1	1
16A 3P 10kA C-Curve MCB	HAGER	NCN316N	1	1
5kVAr 3Ph Normal Duty PhiCap-Cylindrical 440V AC Capacitor	EPCOS	B32344N4052A 40	1	1
7kVAr 3Ph Capacitor Duty Contactor, Voltage: 240V AC, Aux.Contacts: 1NO+1NC, Type: Standard series	EPCOS	B44066S711C240	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	VALIYA	N/A	1	1
Red Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
Green Spring Return Metallic Push Button 22.5 mm	VALIYA	N/A	1	1
1NO Contact Block	VALIYA	N/A	1	1
1NC Contact Block	VALIYA	N/A	1	1
2-Position Metallic Selector Switch	REPUTED	N/A	1	1
6A 1P 10kA C-Curve MCB	HAGER	NCN106N	1	1

MCC Panel Technical Features:

A Power Control Centre (PCC) is a main power control panel that contains feeder breakers and supply breakers, monitoring devices, control devices, switching devices, protection devices, and instrumentation devices. Alternatively, it is called the Main Switchboard..

Construction Details

Modular / Non- compartmentalised construction.
Panel structure with MS CRCA/SS.
Indoor / Outdoor type Structure.
Single front/double front Operated.
Provision for Extensible for future use.
Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

Three Tank / Seven Tank Pre treatment process
Final paint shade as per IS or client specifications
Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

Electrical Grade Aluminum / Copper Busbar
Main busbar chamber at top / bottom of the Panel
Separate chamber for vertical dropper
Busbar supports of SMC/DMC Material
Busbar System design on basis of continuous Current rating and Fault level with stand capacity
Allowable temperature rise as per IS 8623 or as per specifications
Top / Bottom cable entry. Detachable gland plate for cable entry

Assembly & Wiring

Selection of components from Approved / Reputed vendor list as per Approved Drawing
Design of Internal Layout fo optimum usage of space
Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

Inspection of Fabrication structure for dimension as per approved G.A. drawing
Inspection of Painting / Powder coating

4248.0 (D'MAK Power Control Center Panel (PCC)- D'MAK/2024-25/4248.0)

₹3,40,000.00

New

Panel Components

MCC Panel Technical Features
