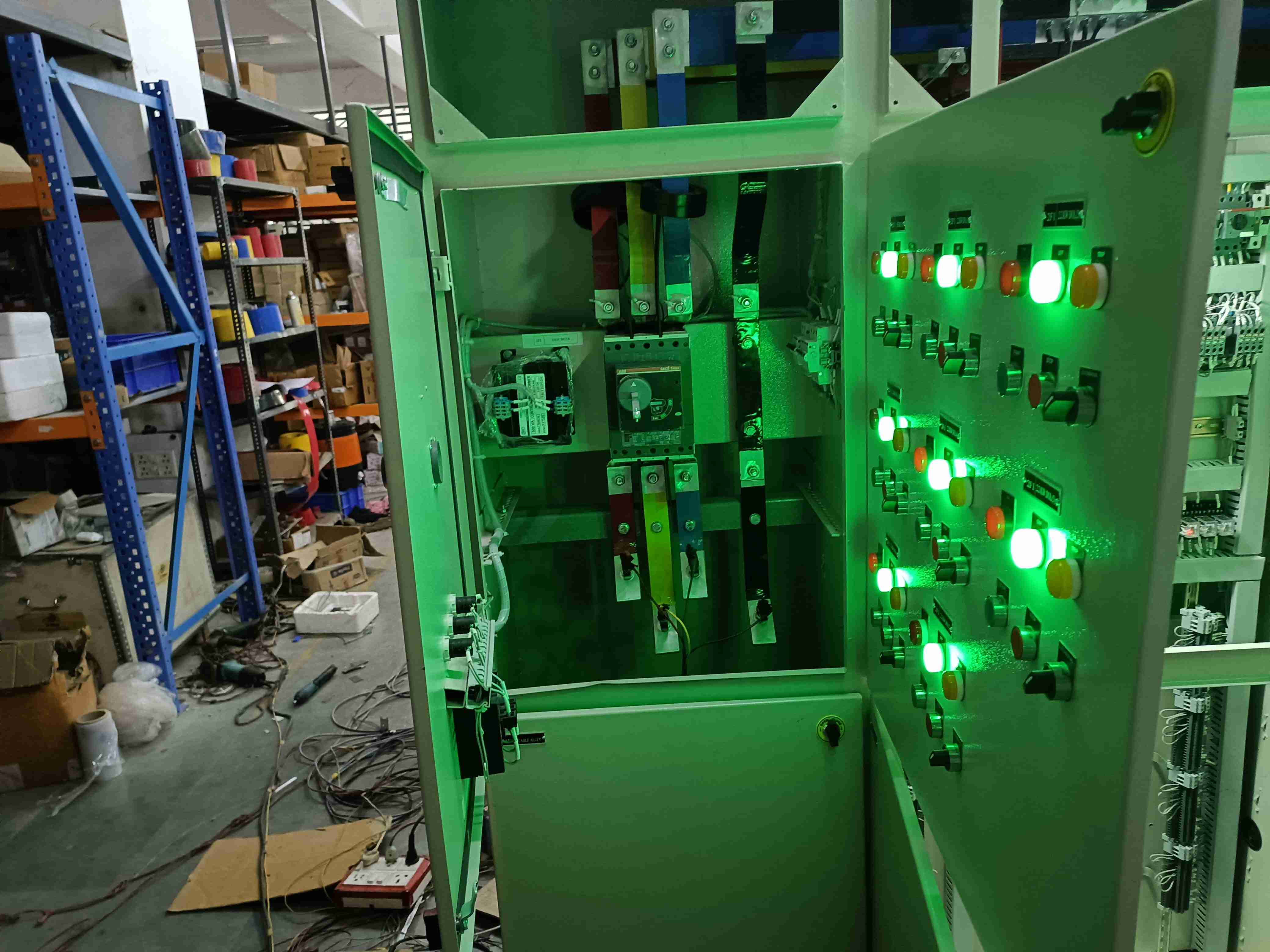

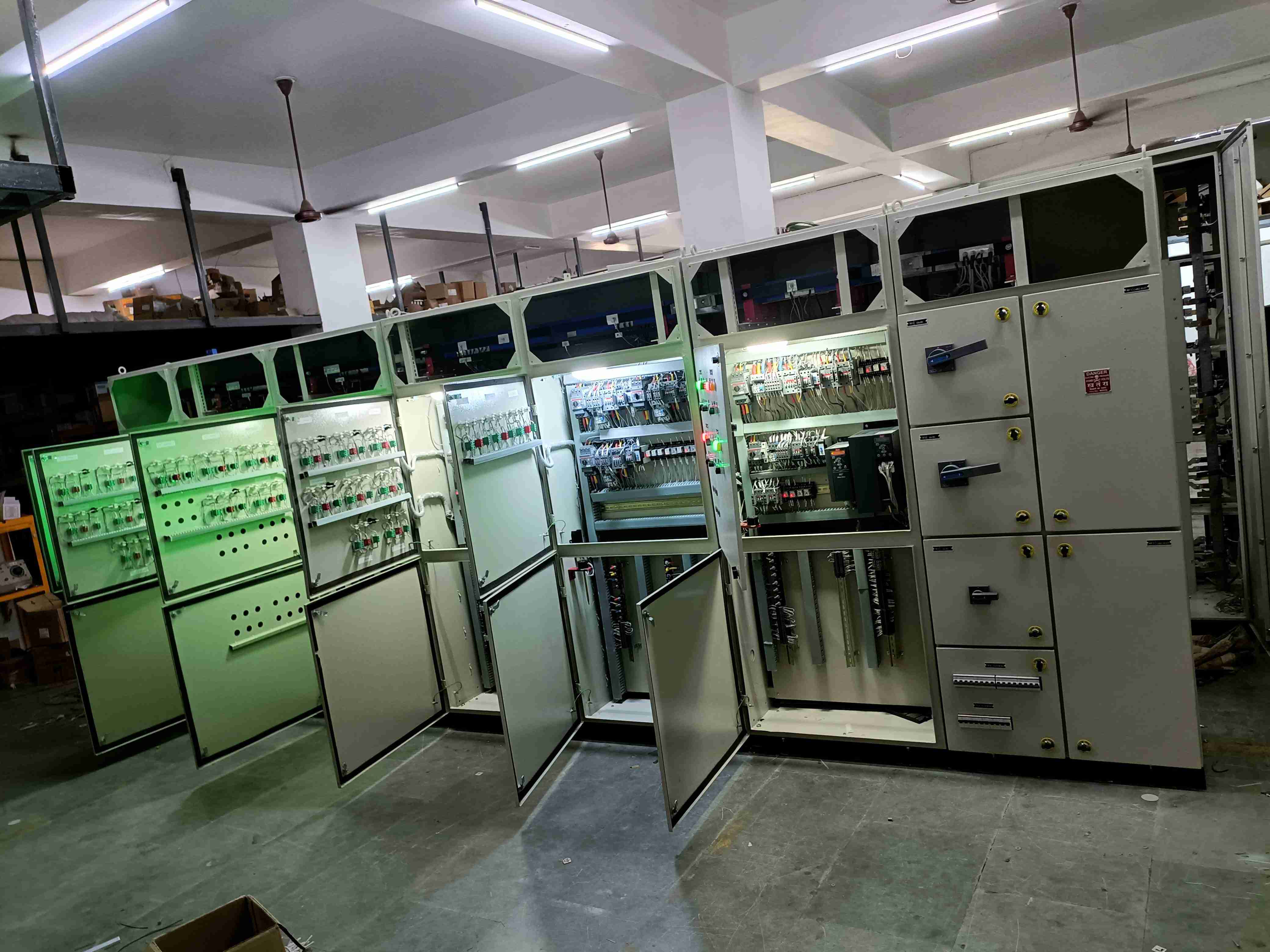

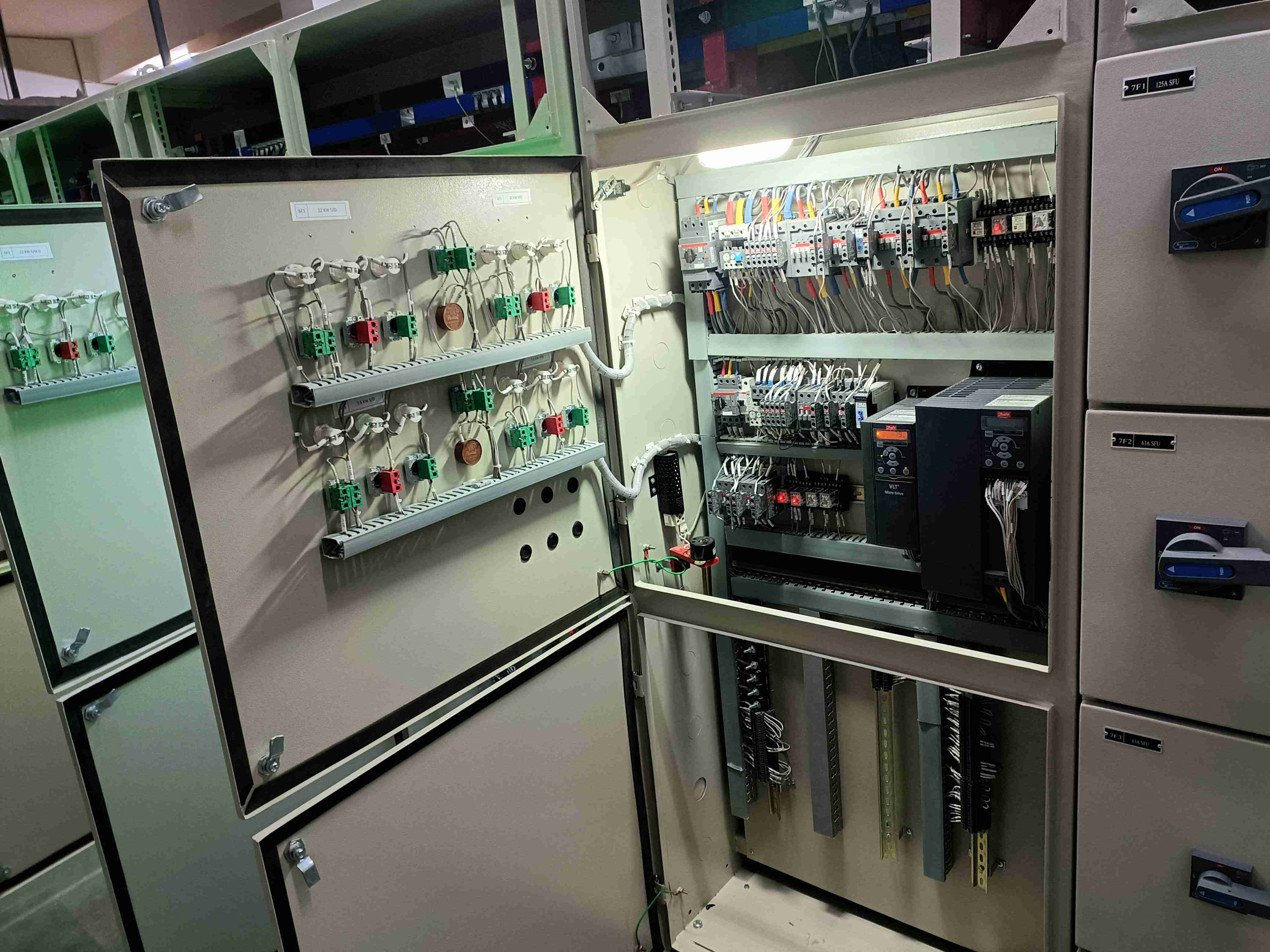

Motor Control Center Panel (MCC)

2921 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2024-25/2921)

New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

Panel Components:

BOQ DESCRIPTION	MAKE	CATALOG NUMBER	QTY	Action

630A 3P 36kA MCCB, Release: PR222 DS/P-LSIG (L (O/L) = 0.4 - 1 of In, S (S/C) = 0.6 - 10 of In, I (I/S/C) = 1.5 - 12 of In, G (E/F) = 0.2 - 1 of In), Type: T5N 630	ABB	1SDA054399R1	1	1
Rotary Handle Operating Mechanism-Extended Normal for Fixed/Plug-in T4-T5 250mm	ABB	1SDA070447R1	1	1
Extended Spreaded Terminals with Phase barriers (6 Pcs.) for T5	ABB	1SDA055038R1	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-Y	1	1
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-B	1	1
600/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 50mm.	P TECH	N/A	3	3
Energy (KWH) Meter, 3Ph, RS485, 6 Digits LED Display, Acc. CL: 1, Aux. Supply: 40-300V AC/DC, Size: 96x96, Model: DPM E300	SECURE	DPM96E300-2	1	1
0.5kVA 1Ph Double Wound Control Transformer	TRIO	N/A	1	1
32A 2P 10kA C-Curve MCB, Type: SB202 M C	ABB	1SYS272012R0324	1	1
15 Watts Space Heater, Voltage: 120-240 VAC/DC	VERITEK	VIPS SPR -15	6	6
Thermostat ( Normally Open), 0 to 60ᴼC	VERITEK	VIPS TH NO	6	6
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	3	3
125A 3PN SFU, Execution: Open, Size: BS-A4, Type: OESA125G1N	ABB	1SYN790290P0526	1	1
125A Offset bolted tag HRC Fuse, Fuse Type: BS, Size: A4, Type: OFF	ABB	1SCA107810R1001	3	3
63A 3PN SFU, Execution: Open, Size: BS-A3, Type: OESA63G1N	ABB	1SYN790290P0518	1	2
63A Offset bolted tag HRC Fuse, Fuse Type: BS, Size: A3, Type: OFF	ABB	1SCA107805R1001	3	6
10A 2P 10kA C-Curve MCB, Type: SB202 M C	ABB	1SYS272012R0104	5	5
32A 4P 10kA C-Curve MCB, Type: SB204 M C	ABB	1SYS274012R0324	4	4
2.5A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 1.60-2.50, Type: MS132-2.50	ABB	1SAM350000R1007	1	1
AC3: 9A AC1: 22A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: AX09-30-10	ABB	1SBL901074R8010	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
6.3A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 4.00-6.30, Type: MS132-6.30	ABB	1SAM350000R1009	1	7
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	7
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	7
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	7
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	7
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	7
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	7
1NC Contact Block	JIGO	JG-ZBE-102	1	7
1NO Contact Block	JIGO	JG-ZBE-101	1	7
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	7
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	7
10A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 6.30-10.0, Type: MS132-10.00	ABB	1SAM350000R1010	1	2
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
12A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 8.00-12.0, Type: MS132-12	ABB	1SAM350000R1012	1	2
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
16A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 10.0-16.0, Type: MS132-16	ABB	1SAM350000R1011	1	2
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
25A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 20.0-25.0, Type: MS132-25	ABB	1SAM350000R1014	1	4
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	1	4
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	4
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	4
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	4
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	4
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	4
1NC Contact Block	JIGO	JG-ZBE-102	1	4
1NO Contact Block	JIGO	JG-ZBE-101	1	4
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	4
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	4
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	1
AC3: 75A AC1: 125A 3P Power Contactor, Coil: 220-230V AC, Type: A75-30-00	ABB	1SBL411001R8000	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
65A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 52.0-65.0, Type: MS165-65	ABB	1SAM451000R1017	1	2
AC3: 75A AC1: 125A 3P Power Contactor, Coil: 220-230V AC, Type: A75-30-00	ABB	1SBL411001R8000	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
20A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 16.0-20.0, Type: MS132-20	ABB	1SAM350000R1013	1	1
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	1
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	2	2
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	2
7.5-11A Thermal Overload Relay Type: TA25DU 11M	ABB	1SAZ211201R2043	1	1
7.5KW VFD	Siemens/ABB/L&T/Danfoss	N/A	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	3
AC3: 37A AC1: 60A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A40-30-10	ABB	1SBL321001R8010	1	3
AC3: 65A AC1: 115A 3P Power Contactor, Coil: 220-230V AC, Type: A63-30-00	ABB	1SBL371001R8000	2	6
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	6
29-42A Thermal Overload Relay Type: TA75DU 42	ABB	1SAZ321201R2003	1	3
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	3
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	3
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	3
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	3
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	3
1NC Contact Block	JIGO	JG-ZBE-102	1	3
1NO Contact Block	JIGO	JG-ZBE-101	1	3
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	3
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	3
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	3
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	1
AC3: 37A AC1: 60A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A40-30-10	ABB	1SBL321001R8010	1	1
AC3: 65A AC1: 115A 3P Power Contactor, Coil: 220-230V AC, Type: A63-30-00	ABB	1SBL371001R8000	2	2
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	2
29-42A Thermal Overload Relay Type: TA75DU 42	ABB	1SAZ321201R2003	1	1
23KW VFD	Siemens/ABB/L&T/Danfoss	N/A	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1

MCC Panel Technical Features:

The Motor Control Centre Panels, also called MCC Panels are used to control motors from a central point in big industrial and commercial applications. In many industrial and commercial applications, many electric motors are required, it is frequently advantageous to control part or all of them from a central place.

Construction Details

Modular / Non- compartmentalised construction.
Panel structure with MS CRCA/SS.
Indoor / Outdoor type Structure.
Single front/double front Operated.
Provision for Extensible for future use.
Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

Three Tank / Seven Tank Pre treatment process
Final paint shade as per IS or client specifications
Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

Electrical Grade Aluminum / Copper Busbar
Main busbar chamber at top / bottom of the Panel
Separate chamber for vertical dropper
Busbar supports of SMC/DMC Material
Busbar System design on basis of continuous Current rating and Fault level with stand capacity
Allowable temperature rise as per IS 8623 or as per specifications
Top / Bottom cable entry. Detachable gland plate for cable entry

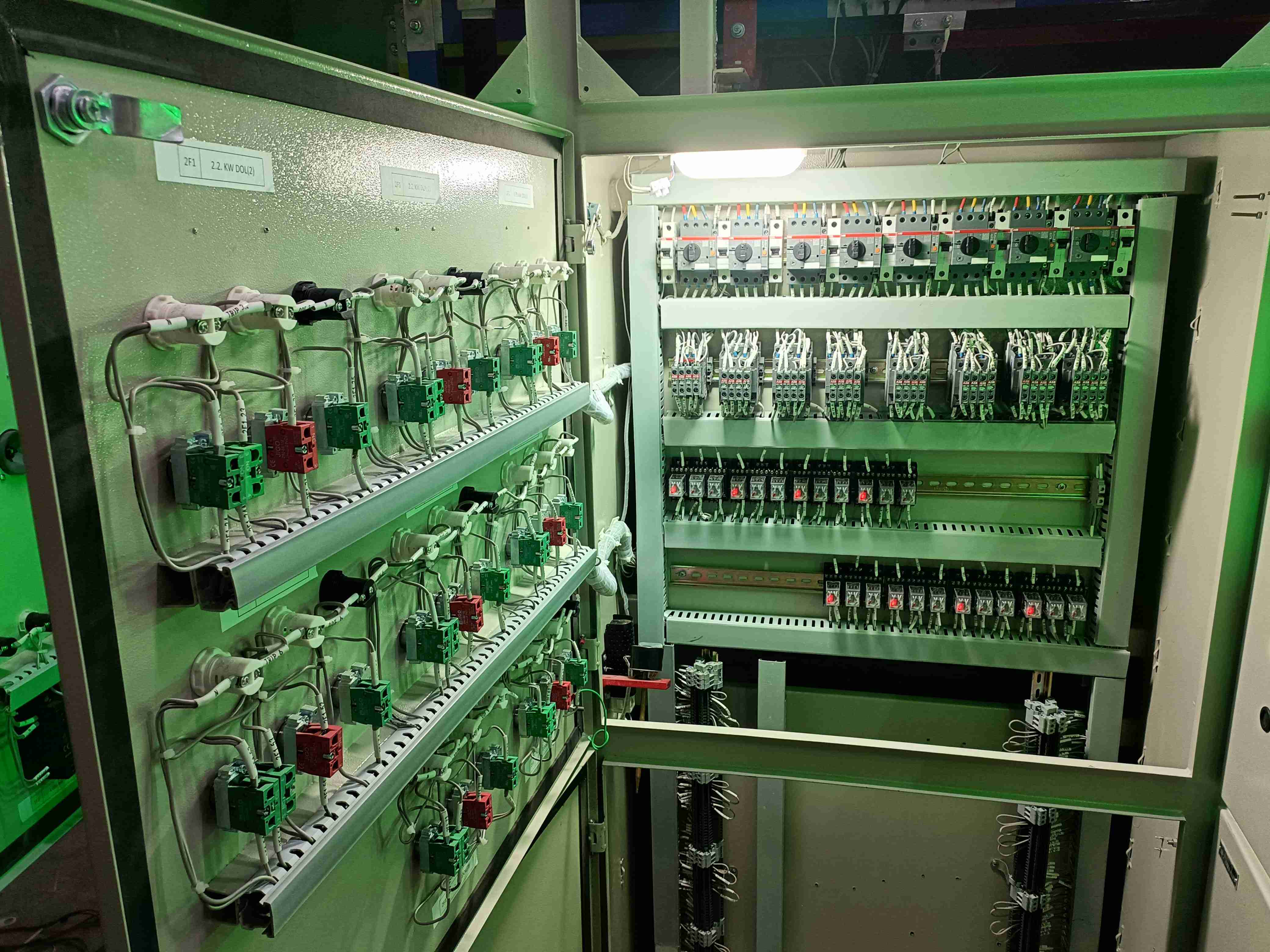

Assembly & Wiring

Selection of components from Approved / Reputed vendor list as per Approved Drawing
Design of Internal Layout fo optimum usage of space
Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

Inspection of Fabrication structure for dimension as per approved G.A. drawing
Inspection of Painting / Powder coating

2921 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2024-25/2921)

₹6,50,000.00

New

Panel Components

MCC Panel Technical Features

BOQ DESCRIPTION	MAKE	CATALOG NUMBER	QTY	Action

630A 3P 36kA MCCB, Release: PR222 DS/P-LSIG (L (O/L) = 0.4 - 1 of In, S (S/C) = 0.6 - 10 of In, I (I/S/C) = 1.5 - 12 of In, G (E/F) = 0.2 - 1 of In), Type: T5N 630	ABB	1SDA054399R1	1	1
Rotary Handle Operating Mechanism-Extended Normal for Fixed/Plug-in T4-T5 250mm	ABB	1SDA070447R1	1	1
Extended Spreaded Terminals with Phase barriers (6 Pcs.) for T5	ABB	1SDA055038R1	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-Y	1	1
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-B	1	1
600/5A 15VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 50mm.	P TECH	N/A	3	3
Energy (KWH) Meter, 3Ph, RS485, 6 Digits LED Display, Acc. CL: 1, Aux. Supply: 40-300V AC/DC, Size: 96x96, Model: DPM E300	SECURE	DPM96E300-2	1	1
0.5kVA 1Ph Double Wound Control Transformer	TRIO	N/A	1	1
32A 2P 10kA C-Curve MCB, Type: SB202 M C	ABB	1SYS272012R0324	1	1
15 Watts Space Heater, Voltage: 120-240 VAC/DC	VERITEK	VIPS SPR -15	6	6
Thermostat ( Normally Open), 0 to 60ᴼC	VERITEK	VIPS TH NO	6	6
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	3	3
125A 3PN SFU, Execution: Open, Size: BS-A4, Type: OESA125G1N	ABB	1SYN790290P0526	1	1
125A Offset bolted tag HRC Fuse, Fuse Type: BS, Size: A4, Type: OFF	ABB	1SCA107810R1001	3	3
63A 3PN SFU, Execution: Open, Size: BS-A3, Type: OESA63G1N	ABB	1SYN790290P0518	1	2
63A Offset bolted tag HRC Fuse, Fuse Type: BS, Size: A3, Type: OFF	ABB	1SCA107805R1001	3	6
10A 2P 10kA C-Curve MCB, Type: SB202 M C	ABB	1SYS272012R0104	5	5
32A 4P 10kA C-Curve MCB, Type: SB204 M C	ABB	1SYS274012R0324	4	4
2.5A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 1.60-2.50, Type: MS132-2.50	ABB	1SAM350000R1007	1	1
AC3: 9A AC1: 22A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: AX09-30-10	ABB	1SBL901074R8010	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
6.3A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 4.00-6.30, Type: MS132-6.30	ABB	1SAM350000R1009	1	7
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	7
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	7
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	7
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	7
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	7
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	7
1NC Contact Block	JIGO	JG-ZBE-102	1	7
1NO Contact Block	JIGO	JG-ZBE-101	1	7
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	7
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	7
10A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 6.30-10.0, Type: MS132-10.00	ABB	1SAM350000R1010	1	2
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
12A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 8.00-12.0, Type: MS132-12	ABB	1SAM350000R1012	1	2
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
16A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 10.0-16.0, Type: MS132-16	ABB	1SAM350000R1011	1	2
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
25A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 20.0-25.0, Type: MS132-25	ABB	1SAM350000R1014	1	4
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	1	4
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	4
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	4
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	4
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	4
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	4
1NC Contact Block	JIGO	JG-ZBE-102	1	4
1NO Contact Block	JIGO	JG-ZBE-101	1	4
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	4
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	4
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	1
AC3: 75A AC1: 125A 3P Power Contactor, Coil: 220-230V AC, Type: A75-30-00	ABB	1SBL411001R8000	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
65A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 52.0-65.0, Type: MS165-65	ABB	1SAM451000R1017	1	2
AC3: 75A AC1: 125A 3P Power Contactor, Coil: 220-230V AC, Type: A75-30-00	ABB	1SBL411001R8000	1	2
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	2
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	2
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	2
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	2
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	2
1NC Contact Block	JIGO	JG-ZBE-102	1	2
1NO Contact Block	JIGO	JG-ZBE-101	1	2
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	2
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	2
20A 100kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 16.0-20.0, Type: MS132-20	ABB	1SAM350000R1013	1	1
AC3: 26A AC1: 45A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A26-30-10	ABB	1SBL241001R8010	1	1
AC3: 32A AC1: 55A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A30-30-10	ABB	1SBL281001R8010	2	2
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	2
7.5-11A Thermal Overload Relay Type: TA25DU 11M	ABB	1SAZ211201R2043	1	1
7.5KW VFD	Siemens/ABB/L&T/Danfoss	N/A	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	3
AC3: 37A AC1: 60A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A40-30-10	ABB	1SBL321001R8010	1	3
AC3: 65A AC1: 115A 3P Power Contactor, Coil: 220-230V AC, Type: A63-30-00	ABB	1SBL371001R8000	2	6
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	6
29-42A Thermal Overload Relay Type: TA75DU 42	ABB	1SAZ321201R2003	1	3
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	3
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	3
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	3
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	3
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	3
1NC Contact Block	JIGO	JG-ZBE-102	1	3
1NO Contact Block	JIGO	JG-ZBE-101	1	3
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	3
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	3
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	3
54A 50kA MPCB, Release: TM Release(Short Circuit, Overload & Phase loss Protection) for Manual Motor Starter,Range: 40.0-54.0, Type: MS165-54	ABB	1SAM451000R1016	1	1
AC3: 37A AC1: 60A 3P Power Contactor, Coil: 220-230V AC, Aux. Contact: 1NO, Type: A40-30-10	ABB	1SBL321001R8010	1	1
AC3: 65A AC1: 115A 3P Power Contactor, Coil: 220-230V AC, Type: A63-30-00	ABB	1SBL371001R8000	2	2
Auxiliary Contact Block, Contacts: 1NO+1NC, Side mounted, 2 pole, For Contactor: A9-A75,AL9-AL40,TAL9-TAL40, AE45-AE75, TAE45-TAE75, AF45-AF75,N,NL &UA 16-75	ABB	1SBN010020R1011	2	2
29-42A Thermal Overload Relay Type: TA75DU 42	ABB	1SAZ321201R2003	1	1
23KW VFD	Siemens/ABB/L&T/Danfoss	N/A	1	1
Red Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-R	1	1
Green Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-G	1	1
Amber Color LED Indicator 22.5 mm, Voltage: 220V AC	JIGO	JG - AD22-A	1	1
Red Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA42	1	1
Green Spring Return Metallic Push Button 22.5 mm	JIGO	JG-BA31	1	1
1NC Contact Block	JIGO	JG-ZBE-102	1	1
1NO Contact Block	JIGO	JG-ZBE-101	1	1
2-Position Metallic Selector Switch	JIGO	JG-BD21	1	1
Star Delta Timer, Time Range: 0.75 - 75. sec., 6 - 60sec., Aux. Supply: 100-120/220-240/380-440V AC, Output Contacts: 1 NO-Star relay 1 NO-Delta relay, Type: S1 ESD1	MINILEC	S1 ESD1	1	1
6A 1P 10kA C-Curve MCB, Type: SB201 M C	ABB	1SYS271012R0064	1	1
