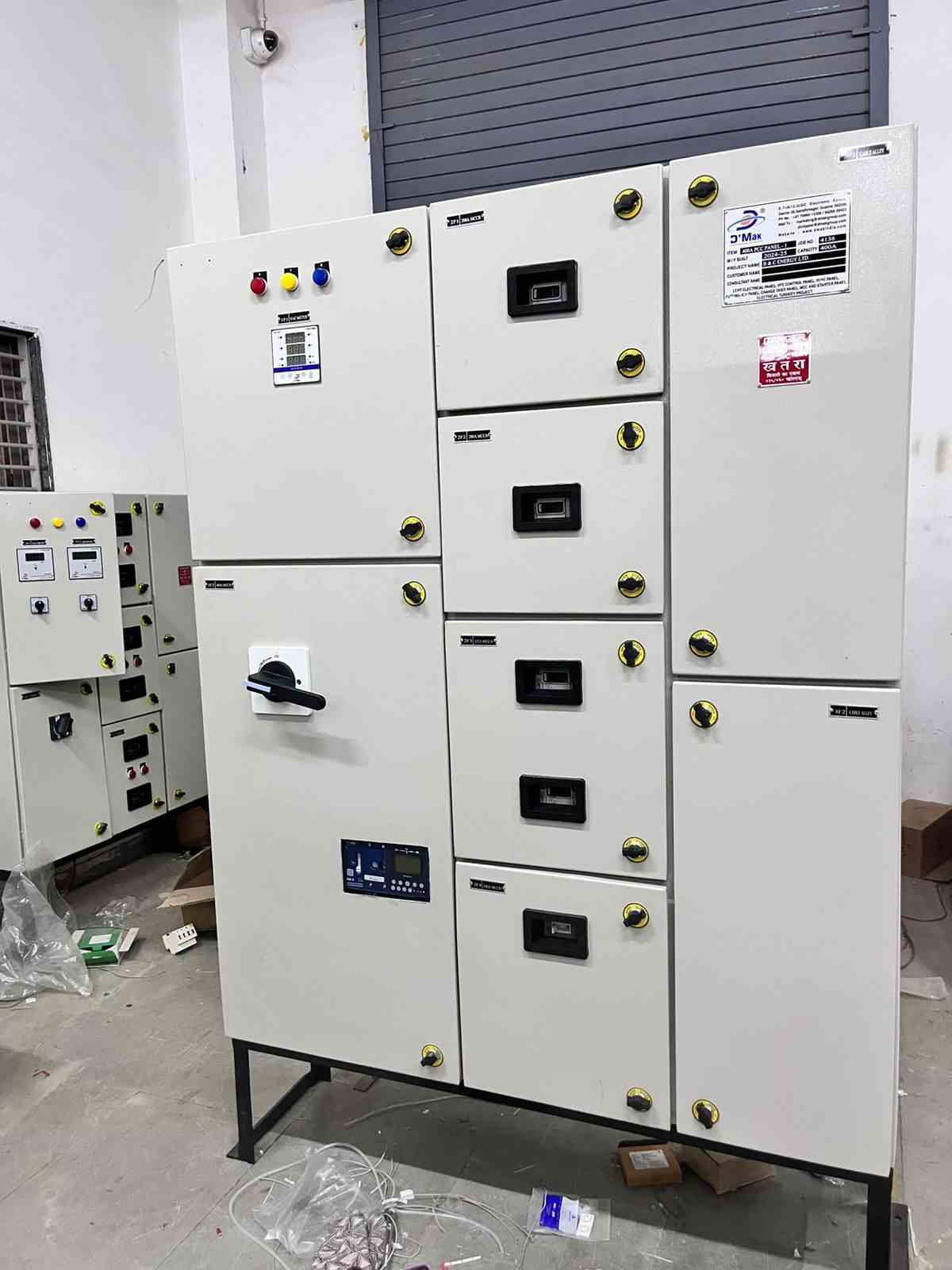

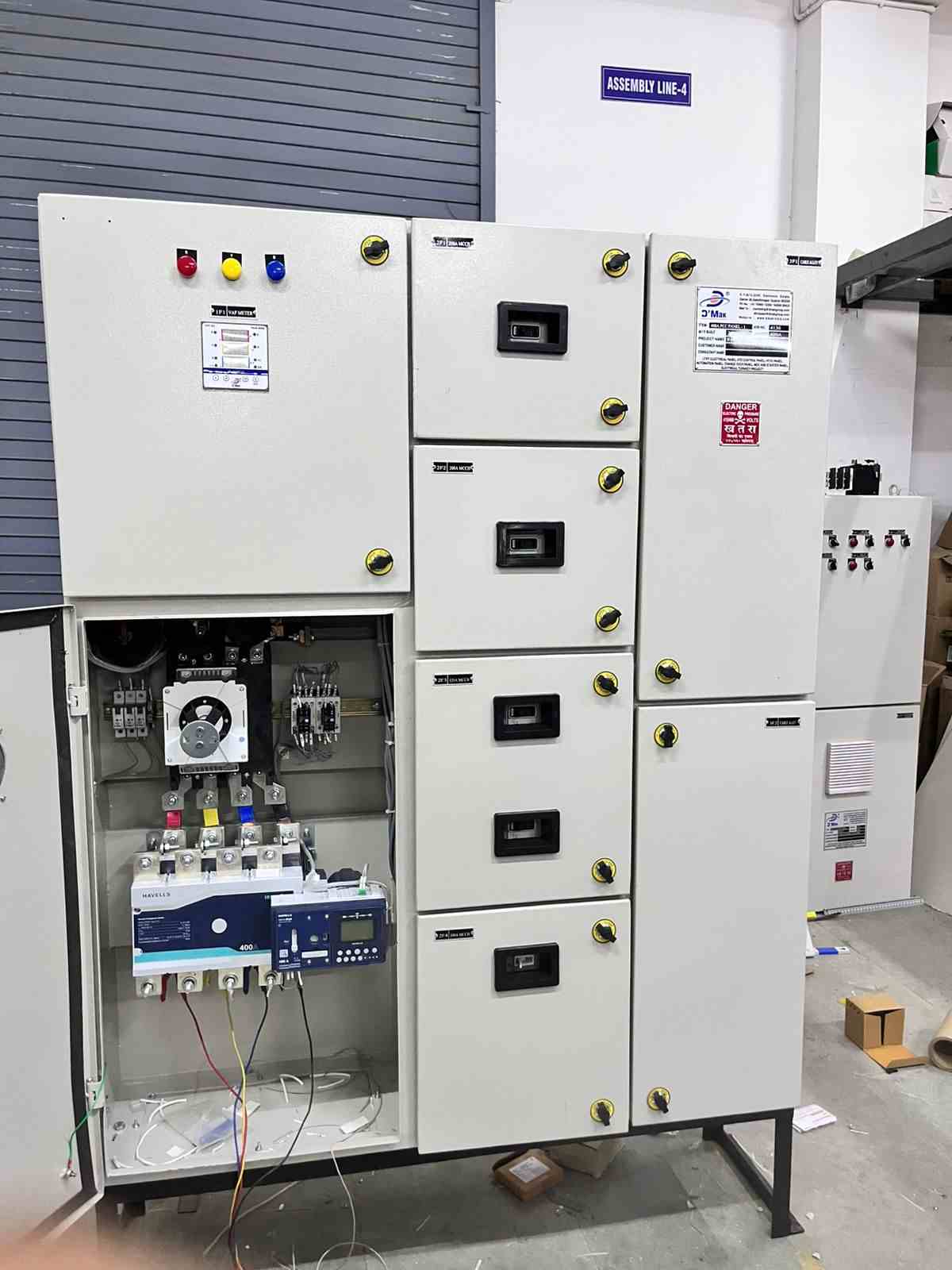

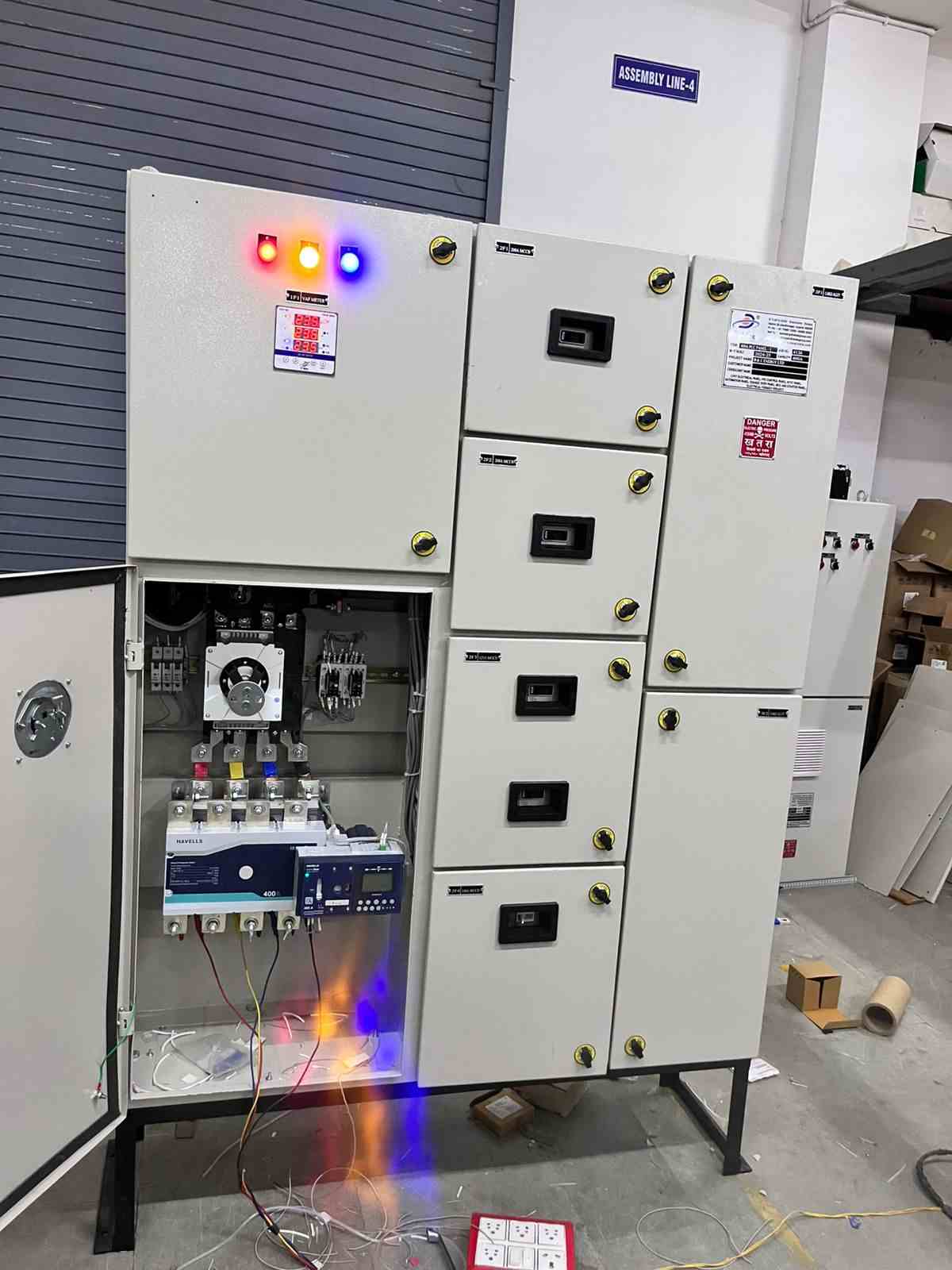

Motor Control Center Panel (MCC)

0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)

0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)

0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

Panel Components:

BOQ DESCRIPTIONMAKECATALOG NUMBERQTYAction
250A 3P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKDMC3P250L11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
VAF Meter, 3Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VAF-99
DMAKDMAK VAF-9911
250/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 30mm.
VIRAT ELECTRICALSN/A33
6A 1P 10kA C-Curve MCB
DMAKDM1P633
FEEDER NAME
40 HP STAR DETLA STARTER13N/A
63A 4P 10kA C-Curve MCB
DMAKDM4P6313
AC3: 25A AC1: 45A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 25
HAVELLSIHPHA025110T13
AC3: 40A AC1: 60A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 40
HAVELLSIHPHA040110T26
Auxiliary Contact Block, 1NO+1NC, Side Block, Contactor Type: HGS9-40
HAVELLSISSPCU196926
22-32A Thermal Over Load Relay (Auto/ Manual Reset), Type: HGST40
HAVELLSIHHR23CW13
Star-Delta Timer, Range: Run Time Range: 30 / 60sec, Change Over Time: 50 /100msec ( user selectable via DIP switches), 2C/O (1 C/O Each For Star And Delta), DIN Rail Mount, Voltage: 110V AC, Type: 800SD-2-110V
SELEC800SD-2-110V13
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R13
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y13
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3113
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4213
1NO Contact Block
JIGOJG-ZBE-10113
1NC Contact Block
JIGOJG-ZBE-10213
2-Position Metallic Selector Switch
JIGOJG-BD2113
6A 1P 10kA C-Curve MCB
DMAKDM1P613
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 900mmWidth : 1000mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 30X10X1NBB: 30X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm18580
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1926
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm7.10
N/AWires - 1 sq. mm9.510
N/AWires - 1.5 sq. mm1420
N/AWires - 2.5 sq. mm2210
WIRES
N/AWires - 4 sq. mm330
N/AWires - 6 sq. mm500
N/AWires - 10 sq. mm8818
N/AWires - 16 sq. mm1350
N/AWires - 25 sq. mm2174
N/AWires - 35 sq. mm3000
N/AWires - 50 sq. mm4300
N/AWires - 70 sq. mm6140
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2540
N/AInsulated Ring Type - 2.5 sq. mm1.6N/A
N/AInsulated Ring Type - 4/6 sq. mm1.720
N/ARing Type - 10 sq. mm2.550
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55000.7
N/AInsulator 30*8 mm1012
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm224
N/ATie 100mm141
N/ATie 150mm351
N/AEnd lock314
N/ASpiral 6mm801
N/ADIN Rail Channel283
N/ASleeves 50mm105
N/A63A 4-way Motor Termial224
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll108
N/ATie Mount501
N/AQ Hook 10mm232
N/ALabels2000.75
N/AHardware1501
N/AMCCB Cover142
N/APVC CHANNEL 25 X 25353
N/APVC Channel 45x45652
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
SWITCHBOARD/PANEL NAME
MCC PANEL 2BOARD QTYN/AN/A
FEEDER NAME
I/C11N/A
160A 4P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKDMC4P160M11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
VAF Meter, 3Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VAF-99
DMAKDMAK VAF-9911
150/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
VIRAT ELECTRICALSN/A33
6A 1P 10kA C-Curve MCB
DMAKDM1P633
FEEDER NAME
30 HP STAR DELTA STARTE13N/A
63A 4P 10kA C-Curve MCB
DMAKDM4P6313
AC3: 25A AC1: 45A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 25
HAVELLSIHPHA025110T13
AC3: 40A AC1: 60A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 40
HAVELLSIHPHA040110T26
Auxiliary Contact Block, 1NO+1NC, Side Block, Contactor Type: HGS9-40
HAVELLSISSPCU196926
17-25A Thermal Over Load Relay (Auto/ Manual Reset), Type: HGST40
HAVELLSIHHR23CV13
Star-Delta Timer, Range: Run Time Range: 30 / 60sec, Change Over Time: 50 /100msec ( user selectable via DIP switches), 2C/O (1 C/O Each For Star And Delta), DIN Rail Mount, Voltage: 110V AC, Type: 800SD-2-110V
SELEC800SD-2-110V13
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R13
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y13
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3113
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4213
1NO Contact Block
JIGOJG-ZBE-10113
1NC Contact Block
JIGOJG-ZBE-10213
2-Position Metallic Selector Switch
JIGOJG-BD2113
6A 1P 10kA C-Curve MCB
DMAKDM1P613
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 900mmWidth : 1000mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 20X10X1NBB: 20X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm18580
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1136
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1920
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm7.10
N/AWires - 1 sq. mm9.510
N/AWires - 1.5 sq. mm1420
N/AWires - 2.5 sq. mm2210
WIRES
N/AWires - 4 sq. mm330
N/AWires - 6 sq. mm500
N/AWires - 10 sq. mm8818
N/AWires - 16 sq. mm1350
N/AWires - 25 sq. mm2174
N/AWires - 35 sq. mm3000
N/AWires - 50 sq. mm4300
N/AWires - 70 sq. mm6140
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2540
N/AInsulated Ring Type - 2.5 sq. mm1.6N/A
N/AInsulated Ring Type - 4/6 sq. mm1.720
N/ARing Type - 10 sq. mm2.550
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55000.7
N/AInsulator 30*8 mm1012
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm224
N/ATie 100mm141
N/ATie 150mm351
N/AEnd lock314
N/ASpiral 6mm801
N/ADIN Rail Channel283
N/ASleeves 50mm105
N/A63A 4-way Motor Termial224
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll108
N/ATie Mount501
N/AQ Hook 10mm232
N/ALabels2000.75
N/AHardware1501
N/AMCCB Cover142
N/APVC CHANNEL 25 X 25353
N/APVC Channel 45x45652
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A

MCC Panel Technical Features:

The Motor Control Centre Panels, also called MCC Panels are used to control motors from a central point in big industrial and commercial applications. In many industrial and commercial applications, many electric motors are required, it is frequently advantageous to control part or all of them from a central place.

Construction Details

  • Modular / Non- compartmentalised construction.
  • Panel structure with MS CRCA/SS.
  • Indoor / Outdoor type Structure.
  • Single front/double front Operated.
  • Provision for Extensible for future use.
  • Provision of Rubber Gaskets to meet IP requirement like IP-42/52/54/55/65.
  • Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Pre Treatment & Painting

  • Three Tank / Seven Tank Pre treatment process
  • Final paint shade as per IS or client specifications
  • Synthetic Enamel / Epoxy based primer / Powder coating as per customer’s requirement

Bus Bar Arrangement & Cable Alley

  • Electrical Grade Aluminum / Copper Busbar
  • Main busbar chamber at top / bottom of the Panel
  • Separate chamber for vertical dropper
  • Busbar supports of SMC/DMC Material
  • Busbar System design on basis of continuous Current rating and Fault level with stand capacity
  • Allowable temperature rise as per IS 8623 or as per specifications
  • Top / Bottom cable entry. Detachable gland plate for cable entry

Assembly & Wiring

  • Selection of components from Approved / Reputed vendor list as per Approved Drawing
  • Design of Internal Layout fo optimum usage of space
  • Internal wiring with 660/1100 v Grade PVC coated stranded Copper Flexible Wires
  • Crimping Lugs are used for internal Connections / Terminations

Quality Assurance & Control Systems

  • Inspection of Fabrication structure for dimension as per approved G.A. drawing
  • Inspection of Painting / Powder coating

0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)

₹1,04,200.00
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
0104 (D'MAK Motor Control Center Panel (MCC)- D'MAK/2022-23/0104)
New

We are a leading manufacturer of power distribution panel (also known as panelboard, breaker panel, or electric panel) which is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our valuable clients can avail an extensive range of PDP Panel from us. Manufactured utilizing best quality raw material, this range of products is in line with the international quality standards & parameters. Widely known for its superior performance, energy efficiency, sturdiness and longer functional life, this range is highly applauded by our clients all across the nation. Moreover, in order to ensure defect free products, our highly skilled quality controllers check this range on various quality parameters.

BOQ DESCRIPTIONMAKECATALOG NUMBERQTYAction
250A 3P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKDMC3P250L11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
VAF Meter, 3Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VAF-99
DMAKDMAK VAF-9911
250/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 30mm.
VIRAT ELECTRICALSN/A33
6A 1P 10kA C-Curve MCB
DMAKDM1P633
FEEDER NAME
40 HP STAR DETLA STARTER13N/A
63A 4P 10kA C-Curve MCB
DMAKDM4P6313
AC3: 25A AC1: 45A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 25
HAVELLSIHPHA025110T13
AC3: 40A AC1: 60A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 40
HAVELLSIHPHA040110T26
Auxiliary Contact Block, 1NO+1NC, Side Block, Contactor Type: HGS9-40
HAVELLSISSPCU196926
22-32A Thermal Over Load Relay (Auto/ Manual Reset), Type: HGST40
HAVELLSIHHR23CW13
Star-Delta Timer, Range: Run Time Range: 30 / 60sec, Change Over Time: 50 /100msec ( user selectable via DIP switches), 2C/O (1 C/O Each For Star And Delta), DIN Rail Mount, Voltage: 110V AC, Type: 800SD-2-110V
SELEC800SD-2-110V13
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R13
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y13
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3113
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4213
1NO Contact Block
JIGOJG-ZBE-10113
1NC Contact Block
JIGOJG-ZBE-10213
2-Position Metallic Selector Switch
JIGOJG-BD2113
6A 1P 10kA C-Curve MCB
DMAKDM1P613
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 900mmWidth : 1000mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 30X10X1NBB: 30X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm18580
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1130
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1926
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm7.10
N/AWires - 1 sq. mm9.510
N/AWires - 1.5 sq. mm1420
N/AWires - 2.5 sq. mm2210
WIRES
N/AWires - 4 sq. mm330
N/AWires - 6 sq. mm500
N/AWires - 10 sq. mm8818
N/AWires - 16 sq. mm1350
N/AWires - 25 sq. mm2174
N/AWires - 35 sq. mm3000
N/AWires - 50 sq. mm4300
N/AWires - 70 sq. mm6140
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2540
N/AInsulated Ring Type - 2.5 sq. mm1.6N/A
N/AInsulated Ring Type - 4/6 sq. mm1.720
N/ARing Type - 10 sq. mm2.550
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55000.7
N/AInsulator 30*8 mm1012
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm224
N/ATie 100mm141
N/ATie 150mm351
N/AEnd lock314
N/ASpiral 6mm801
N/ADIN Rail Channel283
N/ASleeves 50mm105
N/A63A 4-way Motor Termial224
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll108
N/ATie Mount501
N/AQ Hook 10mm232
N/ALabels2000.75
N/AHardware1501
N/AMCCB Cover142
N/APVC CHANNEL 25 X 25353
N/APVC Channel 45x45652
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
SWITCHBOARD/PANEL NAME
MCC PANEL 2BOARD QTYN/AN/A
FEEDER NAME
I/C11N/A
160A 4P 35kA MCCB, TMD Release (Fixed Thermal Magnetic), Type: DMC
DMAKDMC4P160M11
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R11
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y11
Blue Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-B11
VAF Meter, 3Ph, Acc. CL: 1, Size: 96X96, Model: DMAK VAF-99
DMAKDMAK VAF-9911
150/5A 5VA Acc. Cl: 1 Tape Insulated Ring Type Current Transformer, ID: 25mm.
VIRAT ELECTRICALSN/A33
6A 1P 10kA C-Curve MCB
DMAKDM1P633
FEEDER NAME
30 HP STAR DELTA STARTE13N/A
63A 4P 10kA C-Curve MCB
DMAKDM4P6313
AC3: 25A AC1: 45A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 25
HAVELLSIHPHA025110T13
AC3: 40A AC1: 60A 3P Power Contactor, Coil: 415V AC, Aux. Contact: 1NO, Frame 2, Type: HGS 40
HAVELLSIHPHA040110T26
Auxiliary Contact Block, 1NO+1NC, Side Block, Contactor Type: HGS9-40
HAVELLSISSPCU196926
17-25A Thermal Over Load Relay (Auto/ Manual Reset), Type: HGST40
HAVELLSIHHR23CV13
Star-Delta Timer, Range: Run Time Range: 30 / 60sec, Change Over Time: 50 /100msec ( user selectable via DIP switches), 2C/O (1 C/O Each For Star And Delta), DIN Rail Mount, Voltage: 110V AC, Type: 800SD-2-110V
SELEC800SD-2-110V13
Red Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-R13
Yellow Color LED Indicator 22.5 mm, Voltage: 220V AC
JIGOJG - AD22-Y13
Green Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA3113
Red Spring Return Metallic Push Button 22.5 mm
JIGOJG-BA4213
1NO Contact Block
JIGOJG-ZBE-10113
1NC Contact Block
JIGOJG-ZBE-10213
2-Position Metallic Selector Switch
JIGOJG-BD2113
6A 1P 10kA C-Curve MCB
DMAKDM1P613
N/AN/A
FABRICATION DETAILS
N/AN/A
ENCLOSURE
CRCASheet steelN/AN/A
Installation
IndoorDust & Vermin proofN/AN/A
Thickness
14/16 SWGIP- 42N/AN/A
Panel Size
Height : 900mmWidth : 1000mmDepth: 300mmN/A
BUSBAR:- Alluminum(E91E Grade) TP+N with Current Density 0.8A/sq. mm
HBB: 20X10X1NBB: 20X10X1N/AN/A
PAINT:- 70 micron Powder Coating (RAL-7032) after 7 tank chemical pretreatment.
RAL-7032N/AN/AN/A
N/AN/A
TOTAL SWITCHGEAR COST
N/AN/AN/AN/A
OTHER DETAILS
N/ATYPE/MATERIALRATEKG/QTY
N/AEnclosure - 1.2,1.6,2 mm18580
ENCLOUSER
N/AthicknessN/A0
N/AN/AN/A0
N/AAluminium Busbar - 30 x 6 mm (0.675 KG/mtr, 250 - Rate/Kg)1136
N/AAluminium Busbar - 30 x 10 mm (1.1475 KG/mtr, 250 - Rate/Kg)1920
N/AAluminium Busbar - 40 x 10 mm (1.5525 KG/mtr, 250 - Rate/Kg)2590
N/AAluminium Busbar - 40 x 12 mm (1.5525 KG/mtr, 250 - Rate/Kg)3070
N/AAluminium Busbar - 50 x 6 mm (1.1475 KG/mtr, 250 - Rate/Kg)2600
N/AAluminium Busbar - 50 x 10 mm (1.917 KG/mtr, 250 - Rate/Kg)3200
ALUMINIUM BUSBAR
N/AAluminium Busbar - 50 x 12 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 10 mm (2.295 KG/mtr, 250 - Rate/Kg)5200
N/AAluminium Busbar - 60 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)6500
N/AAluminium Busbar - 70 x 12 mm (2.835 KG/mtr, 250 - Rate/Kg)7250
N/AAluminium Busbar - 75 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)6470
N/AAluminium Busbar - 100 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)8550
N/AAluminium Busbar - 125 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)6450
N/AAluminium Busbar - 160 x 6 mm (2.835 KG/mtr, 250 - Rate/Kg)8250
N/AAluminium Busbar - 150 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)19250
N/AAluminium Busbar - 120 x 10 mm (2.835 KG/mtr, 250 - Rate/Kg)10300
N/AAluminium Busbar - 130 x 15 mm (2.835 KG/mtr, 250 - Rate/Kg)16700
N/ACopper Busbar - 20 x 3 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 25 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8200
N/ACopper Busbar - 30 x 6 mm (0.675 KG/mtr, 550 - Rate/Kg)8600
N/ACopper Busbar - 30 x 10 mm (1.1475 KG/mtr, 550 - Rate/Kg)14200
N/ACopper Busbar - 40 x 10 mm (1.5525 KG/mtr, 550 - Rate/Kg)25600
COPPER BUSBAR
N/ACopper Busbar - 50 x 6 mm (1.1475 KG/mtr, 550 - Rate/Kg)19150
N/ACopper Busbar - 50 x 10 mm (1.917 KG/mtr, 550 - Rate/Kg)31850
N/ACopper Busbar - 50 x 12 mm (2.295 KG/mtr, 550 - Rate/Kg)38150
N/ACopper Busbar - 60 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)45580
N/ACopper Busbar - 70 x 10 mm (2.835 KG/mtr, 550 - Rate/Kg)33200
N/ACopper Busbar - 120 x 12 mm (2.835 KG/mtr, 550 - Rate/Kg)69000
N/AWires - 0.75 sq. mm7.10
N/AWires - 1 sq. mm9.510
N/AWires - 1.5 sq. mm1420
N/AWires - 2.5 sq. mm2210
WIRES
N/AWires - 4 sq. mm330
N/AWires - 6 sq. mm500
N/AWires - 10 sq. mm8818
N/AWires - 16 sq. mm1350
N/AWires - 25 sq. mm2174
N/AWires - 35 sq. mm3000
N/AWires - 50 sq. mm4300
N/AWires - 70 sq. mm6140
N/AEnd Sleeves - 1.5 sq. mm ( Pin Type)0.25100
N/AEnd Sleeves - 2.5 sq. mm ( Pin Type)0.4200
N/AEnd Sleeves - 4 sq. mm ( Pin Type)0.5N/A
N/AEnd Sleeves - 6 sq. mm ( Pin Type)0.6N/A
N/AEnd Sleeves - 10 sq. mm ( Pin Type)1.1N/A
N/APin Type - 16 sq. mm5N/A
LUGS
N/AInsulated Ring Type - 1.5 sq. mm1.2540
N/AInsulated Ring Type - 2.5 sq. mm1.6N/A
N/AInsulated Ring Type - 4/6 sq. mm1.720
N/ARing Type - 10 sq. mm2.550
N/ARing Type - 16 sq. mm5.5N/A
N/ARing Type - 25 sq. mm9N/A
N/ARing Type - 35 sq. mm17N/A
LABOUR
N/AN/A55000.7
N/AInsulator 30*8 mm1012
N/AGI Lock1620
N/AKey132
N/AGasket 20x3 mm224
N/ATie 100mm141
N/ATie 150mm351
N/AEnd lock314
N/ASpiral 6mm801
N/ADIN Rail Channel283
N/ASleeves 50mm105
N/A63A 4-way Motor Termial224
N/A100A 4-way Motor Termial380
N/ADanger Board Aluminium101
PANEL ACCESSORIES
N/ADanger Board Sticker31
N/AFerrule301
N/ATaperoll108
N/ATie Mount501
N/AQ Hook 10mm232
N/ALabels2000.75
N/AHardware1501
N/AMCCB Cover142
N/APVC CHANNEL 25 X 25353
N/APVC Channel 45x45652
TOTAL SWITCHBOARD/PANEL COST
N/AN/AN/AN/A
Freight Charge %
N/AN/AN/AN/A
P&F Charge%
N/AN/AN/AN/A
Other %
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other
N/AN/AN/AN/A
OVER HEAD%
N/AN/AN/AN/A
TOTAL SWITCHBOARD/PANEL COST+Freight+P&F+Other+OH
N/AN/AN/AN/A
PROFIT MARGIN%
N/AN/AN/AN/A
FINAL SWITCHBOARD/PANEL COST
N/A1N/AN/A
uspbar-years

15+ years

Expertise

projects-completed

5000+

Projects Completed

happy-clients

1 Million+

Happy clients

quality-service

100%

Quality service

logo

Established in 21st Century, D'MAK™ Group has highly qualified professionals who had adopted best technologies.

Contact Us

Call: +91 79849 79407

Call: +91 92653 01214

Customer Care:+91 70430 34626

(Mon to Sat 9.30 AM to 6 PM)

Email: sales.ip@dmakgroup.commarketing@dmakgroup.com

© 2024 D'Mak Energia. All Rights Reserved.

Developed by: Linearloop
